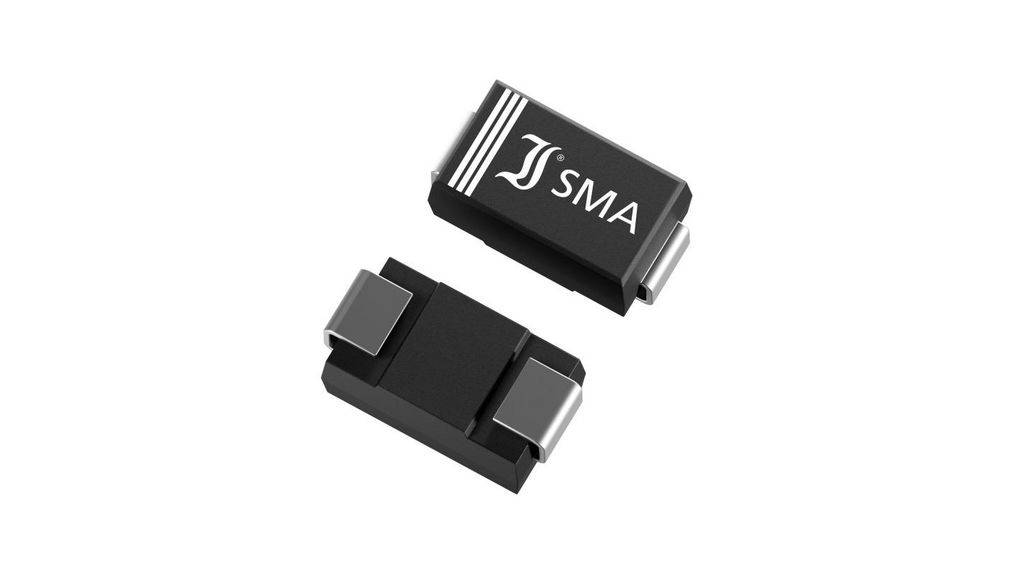

Image similar
Image similar
Diotec Rectifier US1J DO 214AC 600 V 1 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
DO 214AC
Forward current I(F)
1 A
Reverse voltage U(R)
600 V
Forward voltage U(F)
1.70 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
100
-
€ 0.07994
300
9% = € 0.01
€ 0.07266
500
13% = € 0.01
€ 0.06975
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 100
Total (€ 0.07994 / piece)
€ 7.99
plus VAT.
Technical specifications
- Type SMDHOUSING: DO-214AC/SMAPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 75 nsSurge current - IFSM 30.00 AForward voltage - VF 1.70 VIF 1.00 AReverse current - IR 5,000 µAVR 600 VLock layer capacity - CJ: PFVR V
- Type
US1J
- Product type
Rectifier
- Enclosure
DO 214AC
- Manufacturer
Diotec
- Forward current I(F)
1 A
- Reverse voltage U(R)
600 V
- Forward voltage U(F)
1.70 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
30 A
- Reverse recovery time T(rr)
75 ns
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2808871 Diotec Rectifier US1J DO 214AC 600 V 1 A
User & Safety Instructions
User & Safety Instructions 2808871 Diotec Rectifier US1J DO 214AC 600 V 1 A
