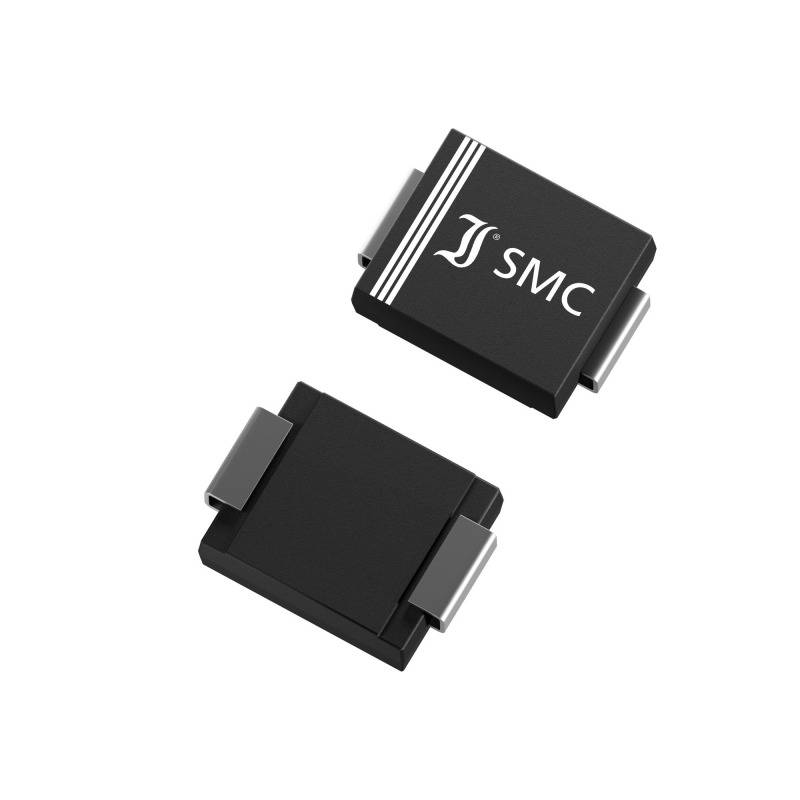

Diotec Rectifier US3B DO 214AB 100 V 3 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
DO 214AB
Forward current I(F)
3 A
Reverse voltage U(R)
100 V
Forward voltage U(F)
1 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
150
-
€ 0.17879
450
9% = € 0.02
€ 0.16250
750
13% = € 0.02
€ 0.15599
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.17879 / piece)
€ 26.82
plus VAT.
14 days return policy included
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Type SMDHOUSING DO-214AB/SMCPeriodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 3.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 50 nsSurge current - IFSM 100.00 AForward voltage - VF 1.00 VIF 3.00 AReverse current - IR 5,000 µAVR 100 VLock layer capacity - CJ 20 pFVR 4 V
- Type
US3B
- Product type
Rectifier
- Enclosure
DO 214AB
- Manufacturer
Diotec
- Forward current I(F)
3 A
- Reverse voltage U(R)
100 V
- Forward voltage U(F)
1 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
100 A
- Reverse recovery time T(rr)
50 ns
- RoHS-compliant
Yes
