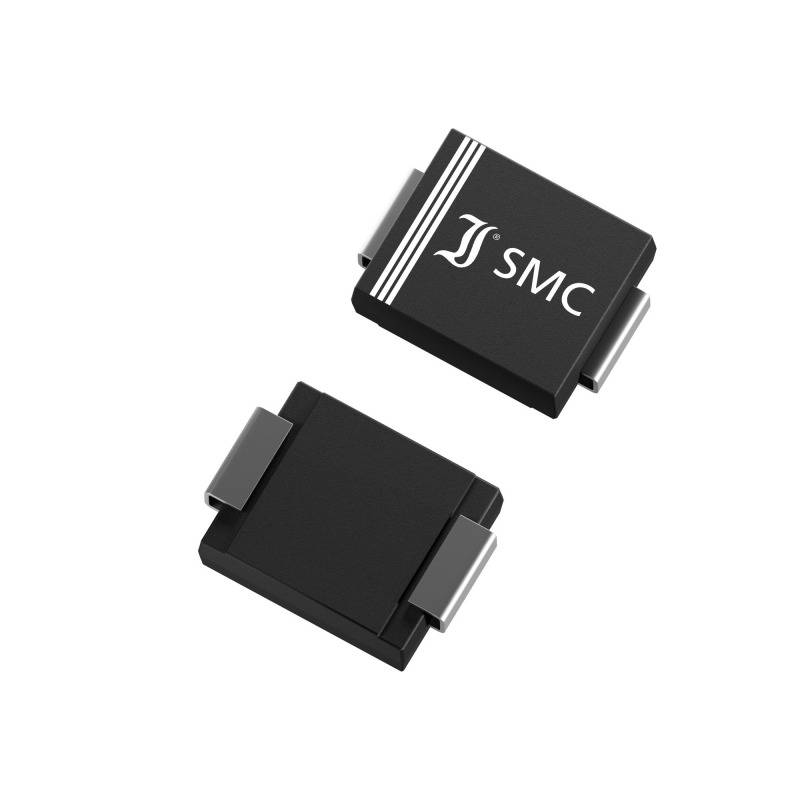

Image similar
Image similar
Diotec Rectifier US3G DO 214AB 400 V 3 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
DO 214AB
Forward current I(F)
3 A
Reverse voltage U(R)
400 V
Forward voltage U(F)
1.25 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
150
-
€ 0.17943
450
9% = € 0.02
€ 0.16308
750
13% = € 0.02
€ 0.15655
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 150
Total (€ 0.17943 / piece)
€ 26.91
plus VAT.
14-day return policy included
Technical specifications
- Type SMDHOUSING DO-214AB/SMCPeriodic Peak Reverse Voltage - VRRM 400 VContinuous current - IFAV 3.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 50 nsSurge current - IFSM 100.00 AForward voltage - VF 1.25 VIF 3.00 AReverse current - IR 5,000 µAVR 400 VLock layer capacity - CJ: PFVR V
- Type
US3G
- Product type
Rectifier
- Enclosure
DO 214AB
- Manufacturer
Diotec
- Forward current I(F)
3 A
- Reverse voltage U(R)
400 V
- Forward voltage U(F)
1.25 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
100 A
- Reverse recovery time T(rr)
50 ns
- RoHS-compliant
Yes
- UKCA
yes
