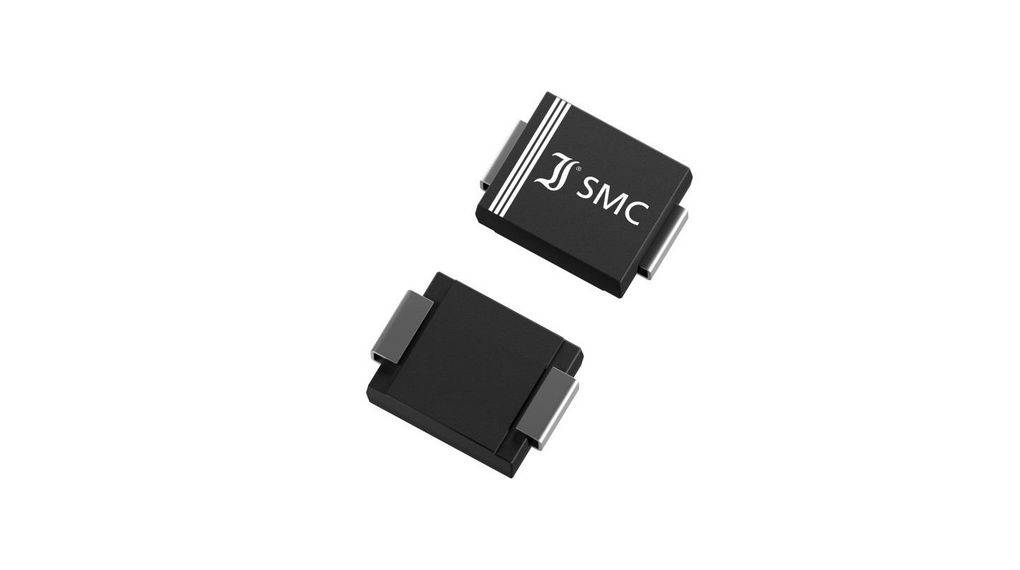

Image similar
Image similar
Diotec Rectifier US3J DO 214AB 600 V 3 A
Part number:
Item no:
Enclosure
DO 214AB
Forward current I(F)
3 A
Reverse voltage U(R)
600 V
Forward voltage U(F)
1.70 V
Mounting type
Surface-mount
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
150
-
€ 0.18135
450
9% = € 0.02
€ 0.16483
750
13% = € 0.02
€ 0.15823
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 150
Total (€ 0.18135 / piece)
€
Technical specifications
- Type SMDHOUSING DO-214AB/SMCPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 3.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 75 nsSurge current - IFSM 100.00 AForward voltage - VF 1.70 VIF 3.00 AReverse current - IR 5,000 µAVR 600 VLock layer capacity - CJ: PFVR V
- Type
US3J
- Enclosure
DO 214AB
- Manufacturer
Diotec
- Forward current I(F)
3 A
- Reverse voltage U(R)
600 V
- Forward voltage U(F)
1.70 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
100 A
- Reverse recovery time T(rr)
75 ns
- RoHS-compliant
Yes
- Product type
Rectifier
Documents & Downloads
Datasheet
Datasheet 2808886 Diotec Rectifier US3J DO 214AB 600 V 3 A
