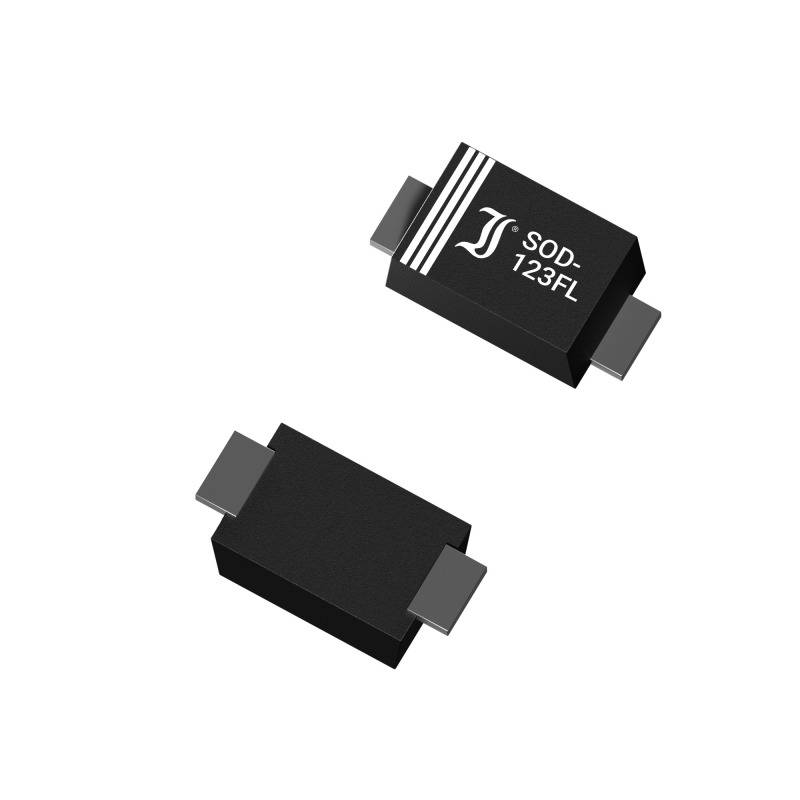

Diotec Rectifier USL1A SOD 123FL 50 V 1 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
SOD 123FL
Forward current I(F)
1 A
Reverse voltage U(R)
50 V
Forward voltage U(F)
1 V
Datasheet (PDF)
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Type SMDSOD 123FL housingPeriodic Peak Reverse Voltage - VRRM 50 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 50 nsSurge current - IFSM 23.00 AForward voltage - VF 1.00 VIF 1.00 AReverse current - IR 1,000 µAVR 50 VLock layer capacity - CJ: PFVR V
- Type
USL1A
- Product type
Rectifier
- Enclosure
SOD 123FL
- Manufacturer
Diotec
- Forward current I(F)
1 A
- Reverse voltage U(R)
50 V
- Forward voltage U(F)
1 V
- Reverse leakage current I(r)
1 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
23 A
- Reverse recovery time T(rr)
50 ns
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2808889 Diotec Rectifier USL1A SOD 123FL 50 V 1 A
User & Safety Instructions
User & Safety Instructions 2808889 Diotec Rectifier USL1A SOD 123FL 50 V 1 A
