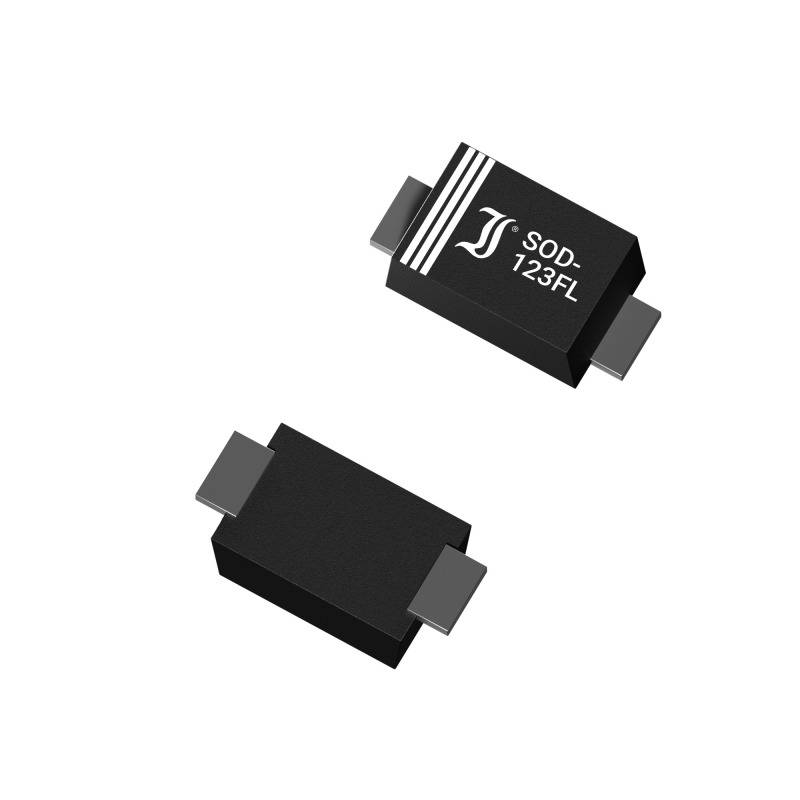

Diotec Rectifier USL1D SOD 123FL 200 V 1 A
Part number:
Item no:
Enclosure
SOD 123FL
Forward current I(F)
1 A
Reverse voltage U(R)
200 V
Forward voltage U(F)
1 V
Mounting type
Surface-mount
Datasheet (PDF)
2750 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.08833
750
9% = € 0.01
€ 0.08028
1250
13% = € 0.01
€ 0.07707
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.08833 / piece)
€
Technical specifications
- Type SMDSOD 123FL housingPeriodic Peak Reverse Voltage - VRRM 200 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 50 nsSurge current - IFSM 23.00 AForward voltage - VF 1.00 VIF 1.00 AReverse current - IR 1,000 µAVR 200 VLock layer capacity - CJ 21 pFVR 4 V
- Type
USL1D
- Enclosure
SOD 123FL
- Manufacturer
Diotec
- Forward current I(F)
1 A
- Reverse voltage U(R)
200 V
- Forward voltage U(F)
1 V
- Reverse leakage current I(r)
1 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
23 A
- Reverse recovery time T(rr)
50 ns
- RoHS-compliant
Yes
- Product type
Rectifier
Documents & Downloads
Datasheet
Datasheet 2808892 Diotec Rectifier USL1D SOD 123FL 200 V 1 A
