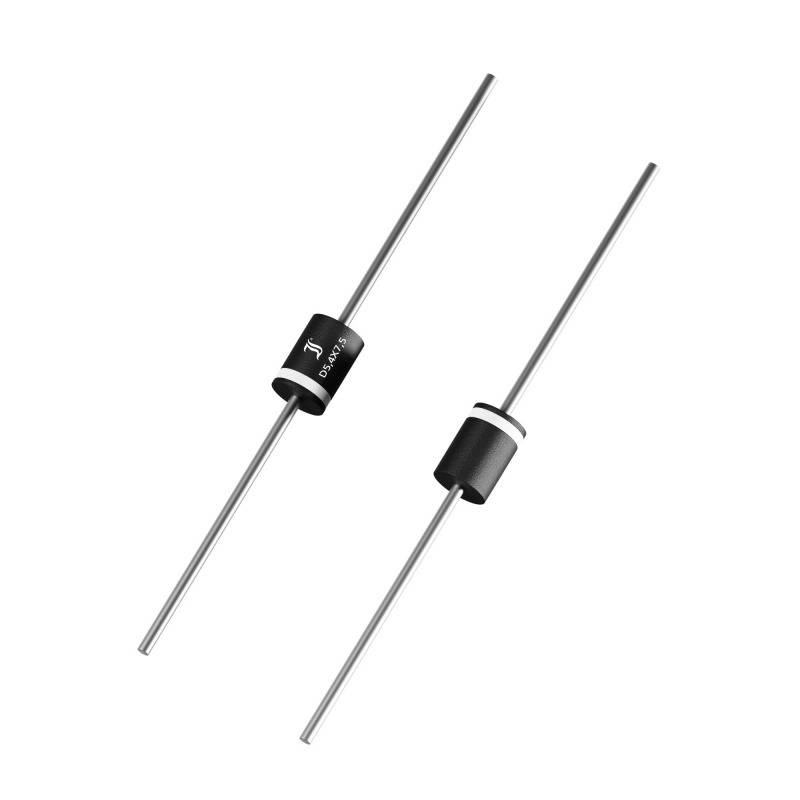

Two black cylindrical diodes with silver wires at both ends. They are aligned parallel to each other.

Image similar

Two black cylindrical diodes with silver wires at both ends. They are aligned parallel to each other.

Image similar

Product type

Schottky diode

Enclosure

D5.4x7.5

Reverse voltage U(R)

50 V

Forward current I(F)

8 A

Configuration (diode)

Schottky

Datasheet (PDF)

English

Diotec

Fast track dispatch on Thu, 1 Oct

577 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.55925 / piece)

€ 5.59

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type AxialHousing: D5.4x7.5Periodic Peak Reverse Voltage - VRRM 50 VContinuous current - IFAV 8.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 0.55 VIF 8.00 ASurge current - IFSM 155.00 AReverse current - IR 500,000 µAVR 50 VLock layer capacity - CJ: PFVR V

Type: 80SQ05

Product type: Schottky diode

Enclosure: D5.4x7.5

Manufacturer: Diotec

Manuf. code: DIO

Reverse voltage U(R): 50 V

Forward current I(F): 8 A

Reverse leakage current I(r): 500 µA

Configuration (diode): Schottky

Peak forward surge current I(FSM): 155 A

Forward voltage U(F): 0.55 V

Forward voltage reference: 8.00 A

Reverse leakage current I(r) reference: 50 V

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 2809053 Diotec Schottky diode 80SQ05 D5.4x7.5 50 V Schottky

User & Safety Instructions

User & Safety Instructions 2809053 Diotec Schottky diode 80SQ05 D5.4x7.5 50 V Schottky
