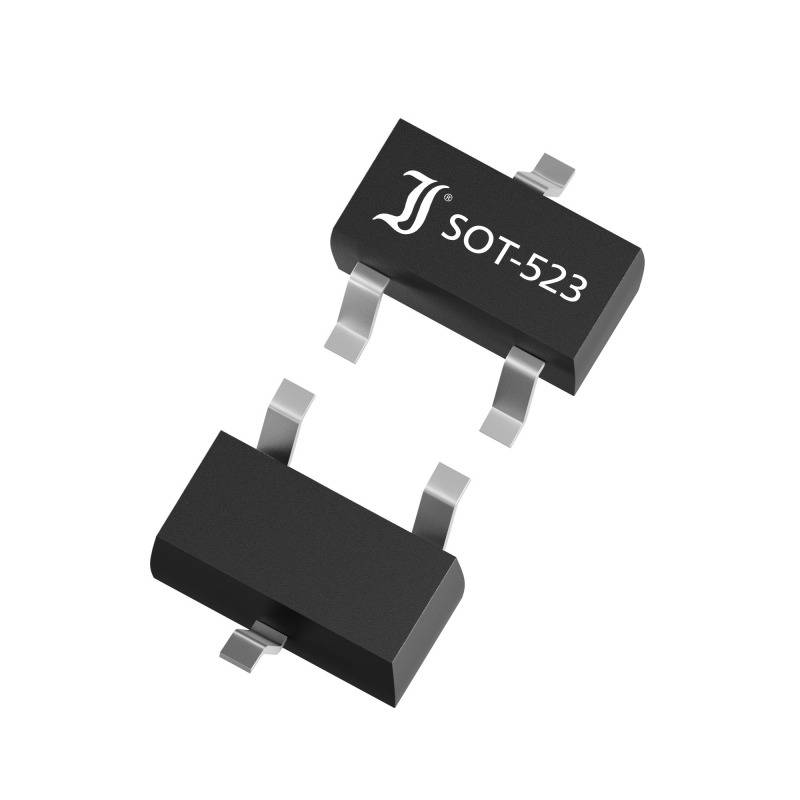

Two electronic components in a black housing with SOT-523 package and three metallic connections, suitable for space-saving applications.

Image similar

Two electronic components in a black housing with SOT-523 package and three metallic connections, suitable for space-saving applications.

Image similar

Enclosure

SOT 523

Reverse voltage U(R)

50 V

Forward current I(F)

2 A

Configuration (diode)

Schottky

Forward voltage U(F)

1 V

Datasheet (PDF)

English

Diotec

Dispatches on Wed, 30 Sep 2026

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.03999 / piece)

€ 29.99

plus VAT.

Report legal concerns

Highlights & Details

SCHOTTKY, SOT-523, 70V, 0.07A

Our service for you

Technical specifications

Type SMDSOT-523 housingPeriodic Peak Reverse Voltage - VRRM 70 VContinuous current - IFAV 0.07 AJunction temperature - Tjmax 125 °CForward voltage - VF 1.00 VIF 0.02 ASurge current - IFSM 0.10 AReverse current - IR 0,100 µAVR 50 VLock layer capacity - CJ: PFVR V

Type: BAS70-05E

Enclosure: SOT 523

Manufacturer: Diotec

Manuf. code: DIO

Reverse voltage U(R): 50 V

Forward current I(F): 2 A

Reverse leakage current I(r): 0.100 µA

Configuration (diode): Schottky

Peak forward surge current I(FSM): 0.10 A

Forward voltage U(F): 1 V

Forward voltage reference: 0.02 A

Reverse leakage current I(r) reference: 50 V

Operating temperature (max.): 125 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

Content: 1 pc(s)

Product type: Schottky diode

Documents & Downloads

Datasheet

English

Datasheet 2809122 Diotec Schottky diode BAS70-05E SOT 523 50 V Schottky
