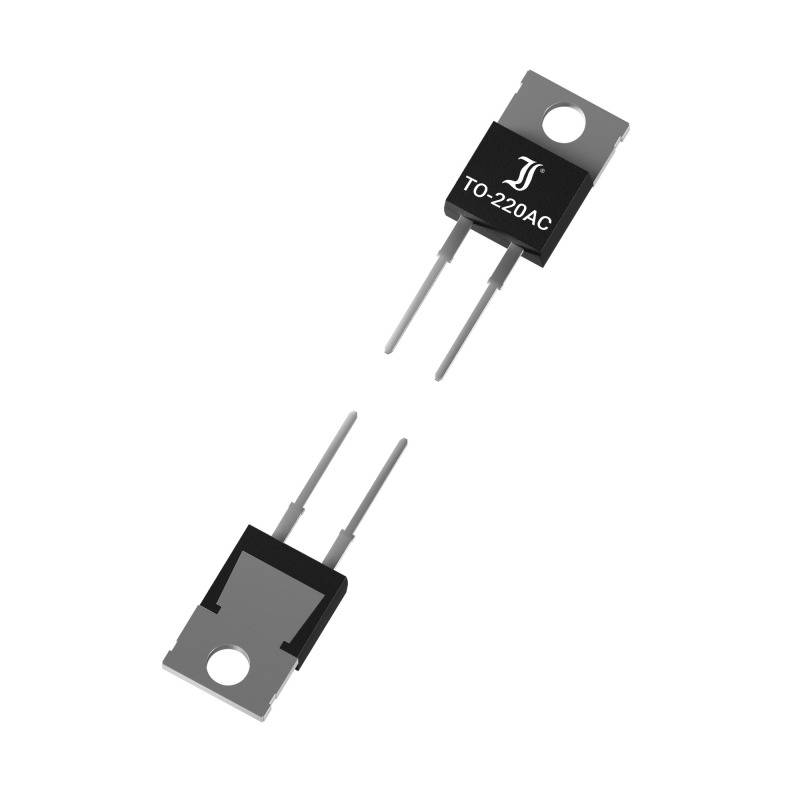

Diotec Schottky diode MBR10100 TO 220AC 100 V Schottky
EAN:
Part number:
Item no:
Product type
Schottky diode
Enclosure
TO 220AC
Reverse voltage U(R)
100 V
Forward current I(F)
10 A
Configuration (diode)
Schottky
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.66739
30
8% = € 0.05
€ 0.61367
50
11% = € 0.08
€ 0.59218
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.66739 / piece)
€ 6.67
plus VAT.
14-day return policy included
Highlights & Details
SCHOTTKY, TO-220AC, 100V, 10A
Our service for you
Technical specifications
- Type wire-leadCasing TO-220AC.Periodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 10.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 0.80 VIF 10.00 ASurge current - IFSM 135.00 AReverse current - IR 100,000 µAVR 100 VLock layer capacity - CJ: PFVR V
- Type
MBR10100
- Product type
Schottky diode
- Enclosure
TO 220AC
- Manufacturer
Diotec
- Manuf. code
DIO
- Reverse voltage U(R)
100 V
- Forward current I(F)
10 A
- Reverse leakage current I(r)
100 µA
- Configuration (diode)
Schottky
- Peak forward surge current I(FSM)
135 A
- Forward voltage U(F)
0.80 V
- Forward voltage reference
10.00 A
- Reverse leakage current I(r) reference
100 V
- Operating temperature (max.)
175 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Content
1 pc(s)
