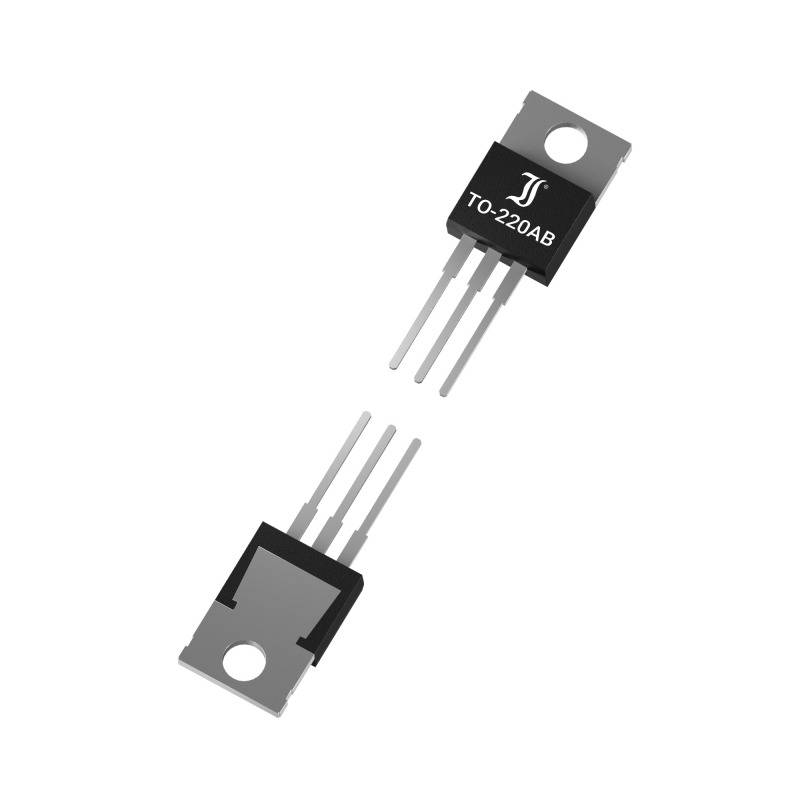

A transistor in a TO-220AB package with three terminals.

Image similar

A transistor in a TO-220AB package with three terminals.

Image similar

Enclosure

TO 220AB

Reverse voltage U(R)

100 V

Forward current I(F)

15 A

Forward voltage U(F)

0.85 V

Mounting type

Through-hole mounting

Datasheet (PDF)

English

Diotec

Dispatches on Wed, 23 Sep 2026

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 40

Total (€ 0.52952 / piece)

€ 21.18

plus VAT.

Report legal concerns

Highlights & Details

Schottky diode

Our service for you

Technical specifications

Type wire-leadCasing TO-220AB.Periodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 30.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 0.85 VIF 15.00 ASurge current - IFSM 170.00 AReverse current - IR 50,000 µAVR 100 VLock layer capacity - CJ 700 pFVR 4 V

Type: MBR30100CT

Enclosure: TO 220AB

Manufacturer: Diotec

Reverse voltage U(R): 100 V

Forward current I(F): 15 A

Reverse leakage current I(r): 50 µA

Peak forward surge current I(FSM): 170 A

Forward voltage U(F): 0.85 V

Diode capacitance C(D): 700 pF

Operating temperature (max.): 175 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

Product type: Schottky diode

Documents & Downloads

Datasheet

English

Datasheet 2809927 Diotec Schottky diode MBR30100CT TO 220AB 100 V
