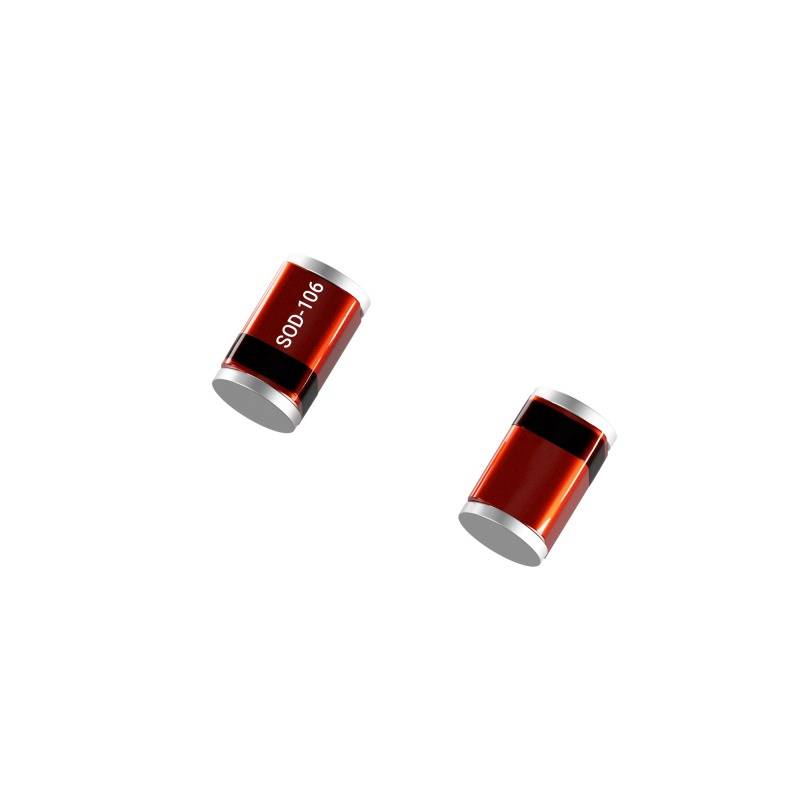

Diotec Schottky diode MCL103C Quadro MicroMelf 10 V Single #####Tape and Reel
EAN:
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
Schottky diode
Enclosure
Quadro MicroMelf
Reverse voltage U(R)
10 V
Forward current I(F)
0.20 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.08704
750
9% = € 0.01
€ 0.07911
1250
13% = € 0.01
€ 0.07594
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.08704 / piece)
€ 21.76
plus VAT.
14-day return policy included
Highlights & Details
SCHOTTKY, SOD 106, 20V, 0.35A
Our service for you
Technical specifications
- Type SMDHousing Quadro MicroMelfPeriodic Peak Reverse Voltage - VRRM 20 VContinuous current - IFAV 0.35 AJunction temperature - Tjmax 125 °CForward voltage - VF 0.60 VIF 0.20 ASurge current - IFSM 15.00 AReverse current - IR 5,000 µAVR 10 VLock layer capacity - CJ: PFVR V
- Packaging type
#####Tape and Reel
- Type
MCL103C
- Product type
Schottky diode
- Enclosure
Quadro MicroMelf
- Manufacturer
Diotec
- Manuf. code
DIO
- Reverse voltage U(R)
10 V
- Forward current I(F)
0.20 A
- Reverse leakage current I(r)
5 µA
- Configuration (diode)
Single
- Peak forward surge current I(FSM)
15 A
- Forward voltage U(F)
0.60 V
- Forward voltage reference
0.20 A
- Reverse leakage current I(r) reference
10 V
- Diode capacitance C(D)
50 pF
- Operating temperature (min.)
-55 °C
- Operating temperature (max.)
125 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
