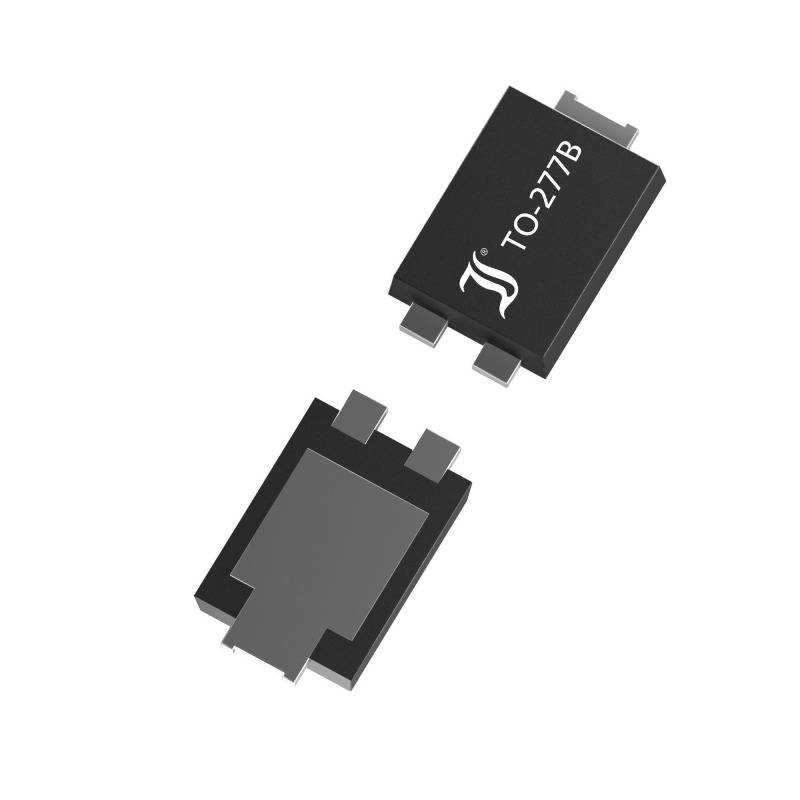

Image similar
Image similar
Diotec Schottky diode PPS1045-3G TO-277B 45 V Single #####Tape and Reel
EAN:
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
Schottky diode
Enclosure
TO-277B
Reverse voltage U(R)
45 V
Forward current I(F)
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.25977
30
9% = € 0.02
€ 0.23611
50
13% = € 0.03
€ 0.22666
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.25977 / piece)
€ 2.60
plus VAT.
14-day return policy included
Technical specifications
- Type SMDCasing TO-277B.Periodic Peak Reverse Voltage - VRRM 45 VContinuous current - IFAV 10.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 0.51 VIF 10.00 ASurge current - IFSM 130.00 AReverse current - IR 200,000 µAVR 45 VLock layer capacity - CJ 510 pFVR 4 V
- Packaging type
#####Tape and Reel
- Type
PPS1045-3G
- Product type
Schottky diode
- Enclosure
TO-277B
- Manufacturer
Diotec
- Manuf. code
DIO
- Reverse voltage U(R)
45 V
- Forward current I(F)
10 A
- Reverse leakage current I(r)
200 µA
- Configuration (diode)
Single
- Peak forward surge current I(FSM)
130 A
- Forward voltage U(F)
0.51 V
- Forward voltage reference
10.00 A
- Reverse leakage current I(r) reference
45 V
- Diode capacitance C(D)
510 pF
- Operating temperature (min.)
-50 °C
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
