Buy Diotec Schottky diode SB120S DO 41 20 V Schottky

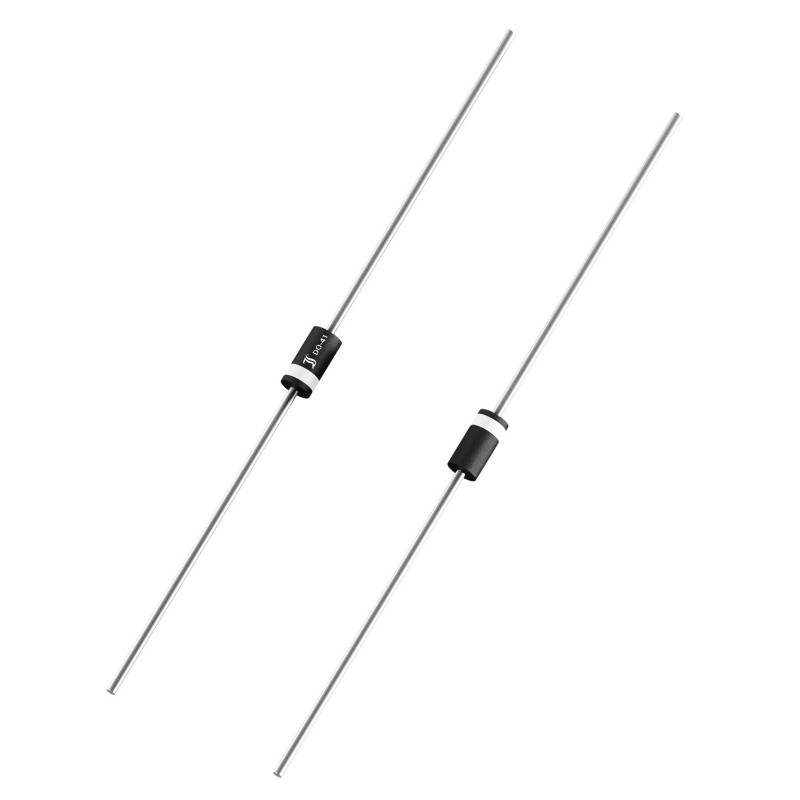

Two cylindrical diodes with black casings and long metallic connections, positioned side by side on a white background.

Image similar

Product type

Schottky diode

Enclosure

DO 41

Reverse voltage U(R)

20 V

Forward current I(F)

1 A

Configuration (diode)

Schottky

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

4150 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.04171 / piece)

€ 31.28

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Type: SB120S

Product type: Schottky diode

Enclosure: DO 41

Manufacturer: Diotec

Manuf. code: DIO

Reverse voltage U(R): 20 V

Forward current I(F): 1 A

Reverse leakage current I(r): 1000 µA

Configuration (diode): Schottky

Peak forward surge current I(FSM): 30 A

Forward voltage U(F): 0.50 V

Forward voltage reference: 1.00 A

Reverse leakage current I(r) reference: 20 V

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)
