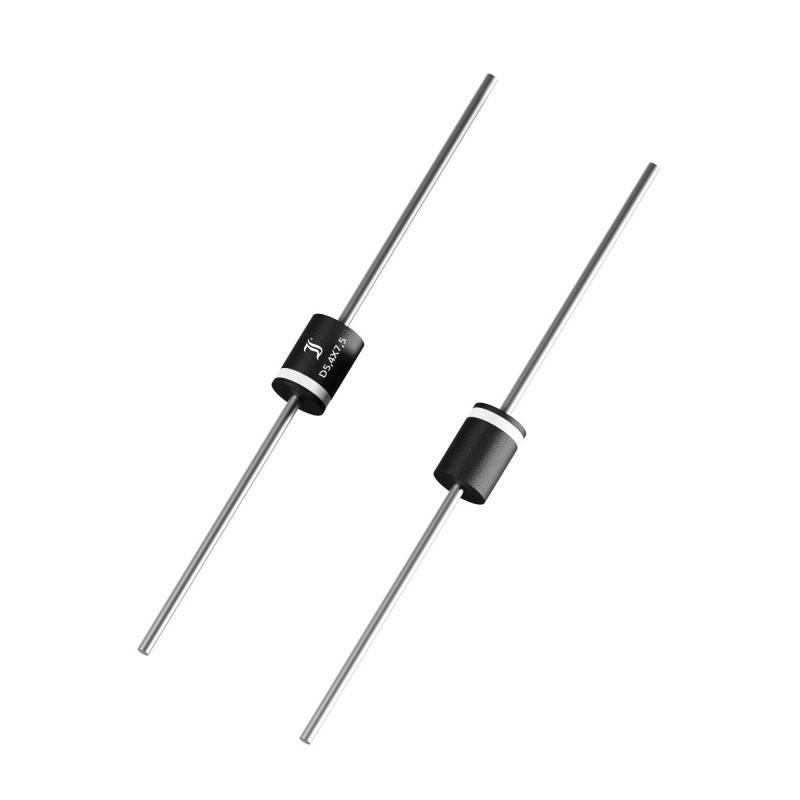

Image similar
Image similar
Diotec Schottky diode SB12100 D5.4x7.5 100 V Single #####Tape and Reel
EAN:
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
Schottky diode
Enclosure
D5.4x7.5
Reverse voltage U(R)
100 V
Forward current I(F)
12 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.74971
30
8% = € 0.06
€ 0.68936
50
11% = € 0.08
€ 0.66522
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.74971 / piece)
€ 7.50
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
#####Tape and Reel
- Type
SB12100
- Product type
Schottky diode
- Enclosure
D5.4x7.5
- Manufacturer
Diotec
- Manuf. code
DIO
- Reverse voltage U(R)
100 V
- Forward current I(F)
12 A
- Reverse leakage current I(r)
500 µA
- Configuration (diode)
Single
- Peak forward surge current I(FSM)
280 A
- Forward voltage U(F)
0.83 V
- Forward voltage reference
12.00 A
- Reverse leakage current I(r) reference
100 V
- Diode capacitance C(D)
720 pF
- Operating temperature (min.)
-50 °C
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2810517 Diotec Schottky diode SB12100 D5.4x7.5 100 V Single #####Tape and Reel
User & Safety Instructions
User & Safety Instructions 2810517 Diotec Schottky diode SB12100 D5.4x7.5 100 V Single #####Tape and Reel
