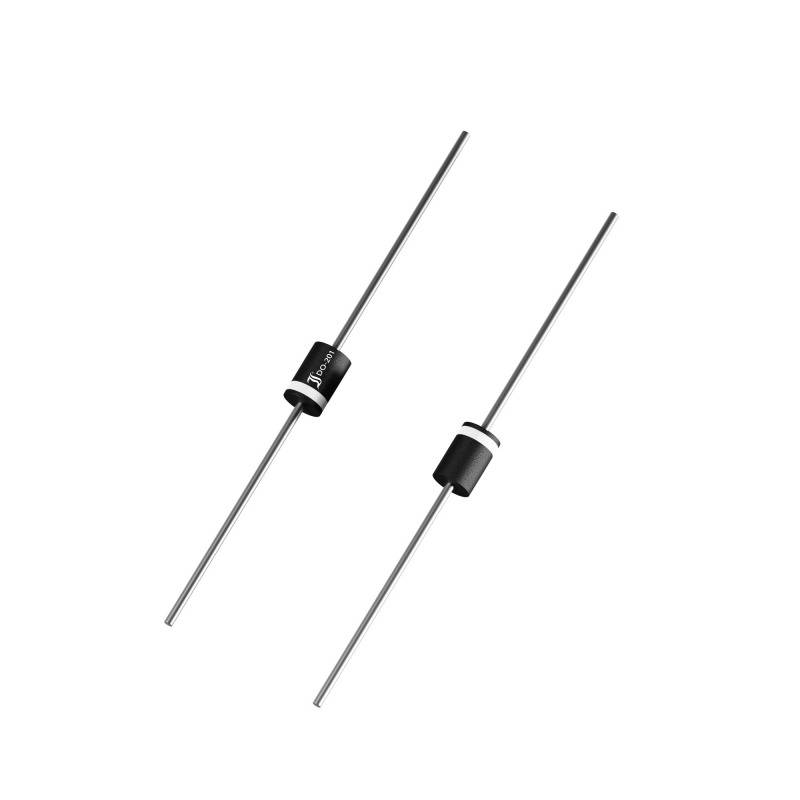

Image similar
Image similar
Diotec Schottky diode SB540 DO 201 40 V Single #####Tape and Reel
EAN:
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
Schottky diode
Enclosure
DO 201
Reverse voltage U(R)
40 V
Forward current I(F)
5 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.28565
30
9% = € 0.03
€ 0.25962
50
13% = € 0.04
€ 0.24923
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.28565 / piece)
€ 2.86
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
#####Tape and Reel
- Type
SB540
- Product type
Schottky diode
- Enclosure
DO 201
- Manufacturer
Diotec
- Manuf. code
DIO
- Reverse voltage U(R)
40 V
- Forward current I(F)
5 A
- Reverse leakage current I(r)
500 µA
- Configuration (diode)
Single
- Peak forward surge current I(FSM)
125 A
- Forward voltage U(F)
0.55 V
- Forward voltage reference
5.00 A
- Reverse leakage current I(r) reference
40 V
- Diode capacitance C(D)
300 pF
- Operating temperature (min.)
-50 °C
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
