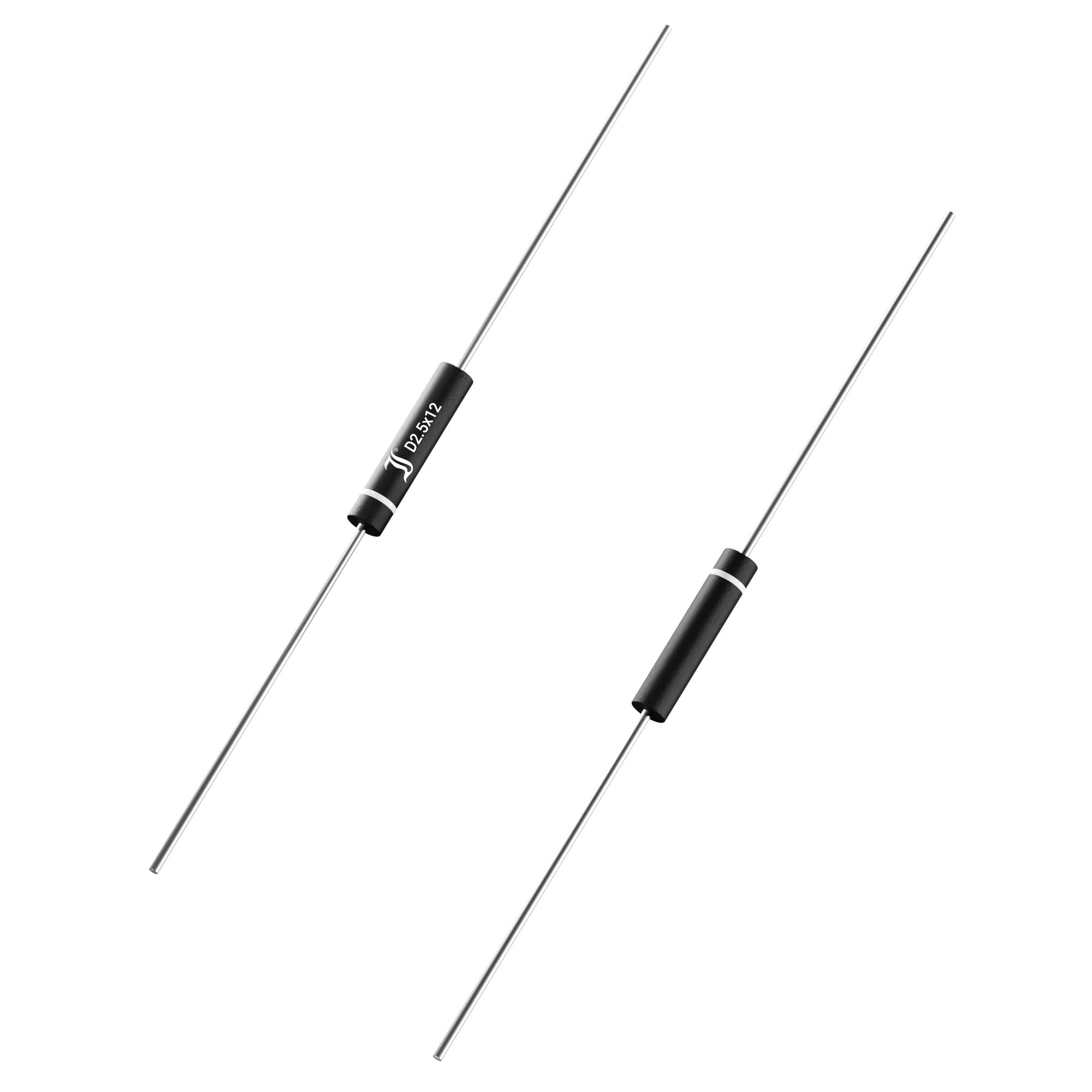

Image similar
Image similar
Diotec Si high voltage rectifier 2CL71A D2.5x6.5 8000 V 12 A
EAN:
Part number:
Item no:
Product type
Si high voltage rectifier
Enclosure
D2.5x6.5
Forward current I(F)
12 A
Reverse voltage U(R)
8000 V
Forward voltage U(F)
30 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
90
-
€ 0.22648
270
9% = € 0.02
€ 0.20585
450
13% = € 0.03
€ 0.19761
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 90
Total (€ 0.22648 / piece)
€ 20.38
plus VAT.
14-day return policy included
Technical specifications
- Type
2CL71A
- Product type
Si high voltage rectifier
- Enclosure
D2.5x6.5
- Manufacturer
Diotec
- Forward current I(F)
12 A
- Reverse voltage U(R)
8000 V
- Forward voltage U(F)
30 V
- Reverse leakage current I(r)
2 µA
- Operating temperature (max.)
120 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
0.50 A
- Reverse recovery time T(rr)
80 ns
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2806787 Diotec Si high voltage rectifier 2CL71A D2.5x6.5 8000 V 12 A
User & Safety Instructions
User & Safety Instructions 2806787 Diotec Si high voltage rectifier 2CL71A D2.5x6.5 8000 V 12 A
