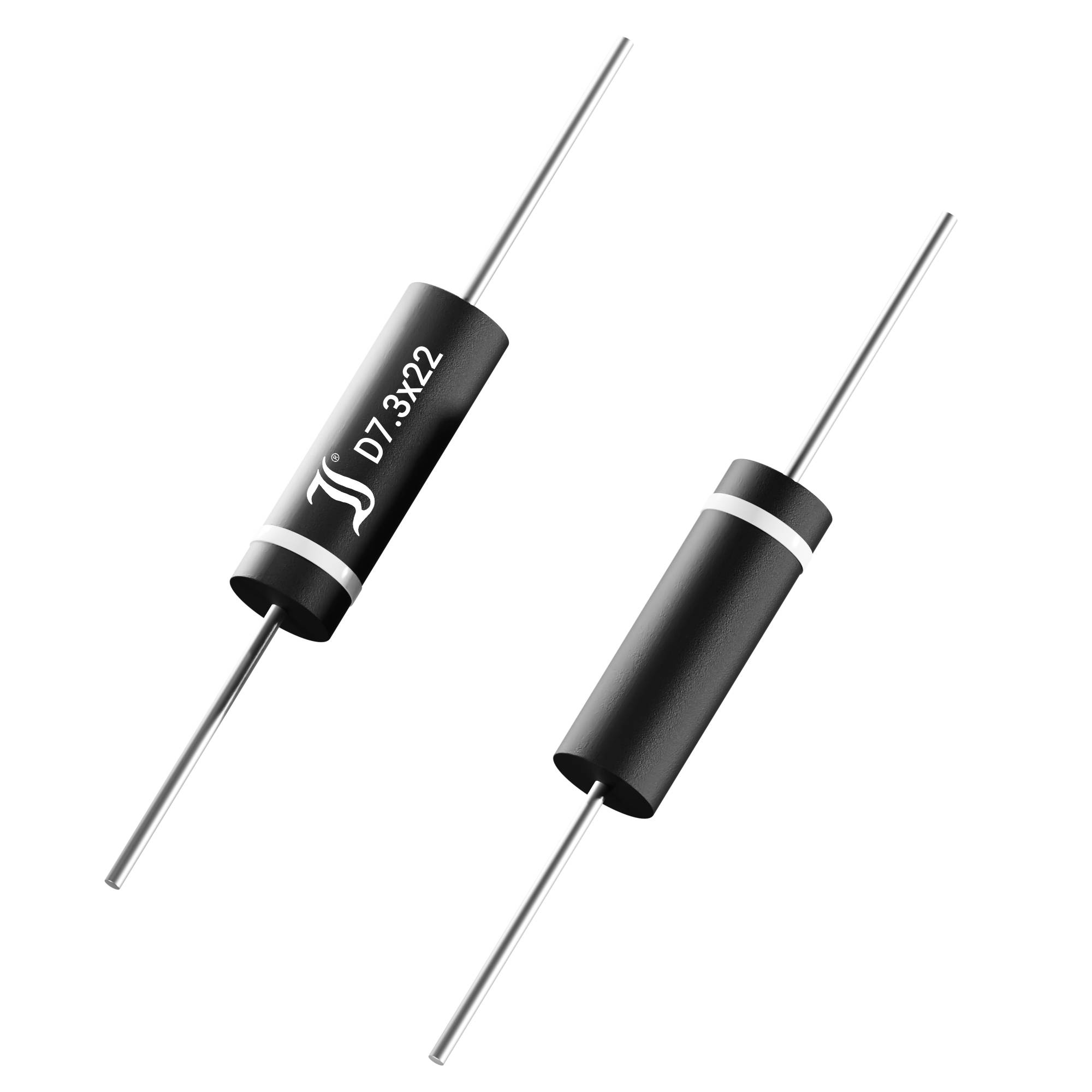

Diotec Si high voltage rectifier BY4 D7.3x22 4000 V 1 A
EAN:
Part number:
Item no:
Product type
Si high voltage rectifier
Enclosure
D7.3x22
Forward current I(F)
1 A
Reverse voltage U(R)
4000 V
Forward voltage U(F)
4 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 1.17553
60
8% = € 0.09
€ 1.08090
100
11% = € 0.13
€ 1.04305
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 1.17553 / piece)
€ 23.51
plus VAT.
14-day return policy included
Technical specifications
- Type AxialHousing: D7.3x22Periodic Peak Reverse Voltage - VRRM 4000 VContinuous current - IFAV 1.00 AReverse delay time - trr: NsJunction temperature - Tjmax 150 °CSurge current - IFSM 30.00 AForward voltage - VF 4.00 VIF 1.00 AReverse current - IR 1,000 µAVR 4000 VLock layer capacity - CJ: PFVR V
- Type
BY4
- Product type
Si high voltage rectifier
- Enclosure
D7.3x22
- Manufacturer
Diotec
- Forward current I(F)
1 A
- Reverse voltage U(R)
4000 V
- Forward voltage U(F)
4 V
- Reverse leakage current I(r)
1 µA
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
30 A
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2807347 Diotec Si high voltage rectifier BY4 D7.3x22 4000 V 1 A
User & Safety Instructions
User & Safety Instructions 2807347 Diotec Si high voltage rectifier BY4 D7.3x22 4000 V 1 A
