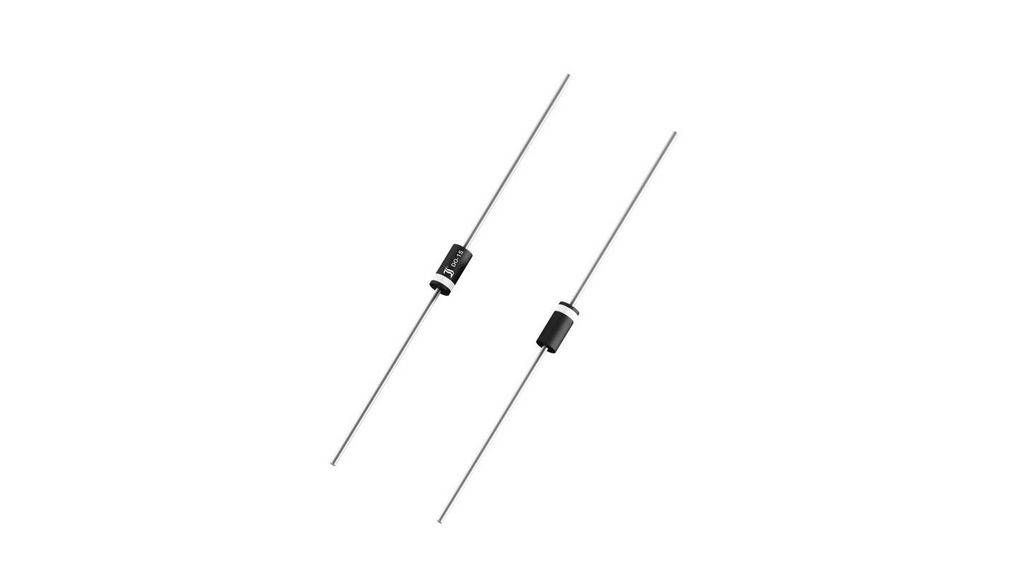

Image similar

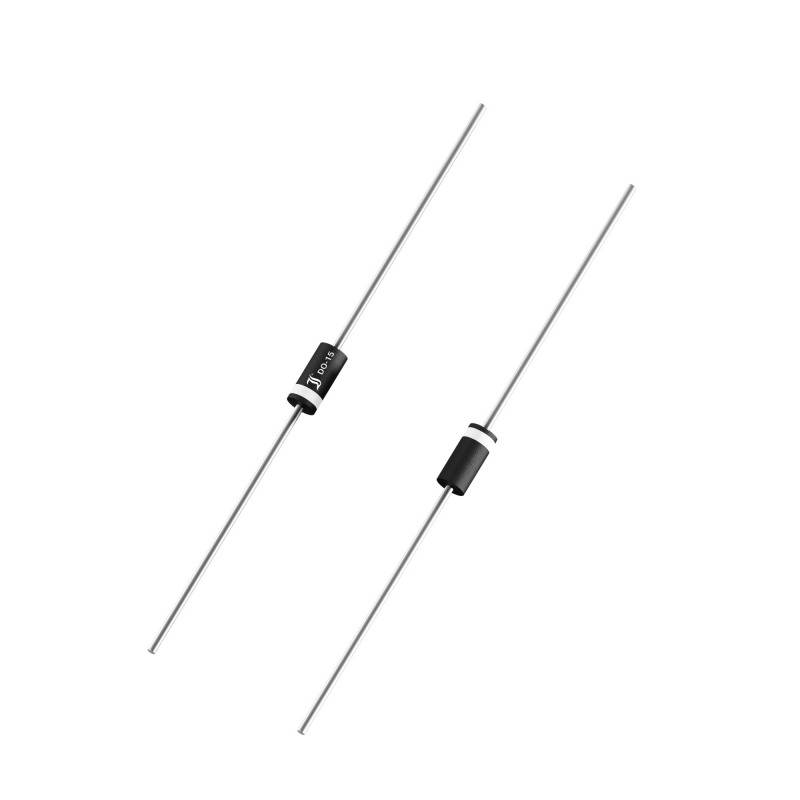

Image similar
Diotec Si high voltage rectifier HV6 DO 15 6000 V 0.20 A
EAN:
Part number:
Item no:
Product type
Si high voltage rectifier
Enclosure
DO 15
Forward current I(F)
0.20 A
Reverse voltage U(R)
6000 V
Forward voltage U(F)
6 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
60
-
€ 0.29834
180
9% = € 0.03
€ 0.27116
300
13% = € 0.04
€ 0.26029
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.29834 / piece)
€ 17.90
plus VAT.
14 days return policy included
Technical specifications
- Type AxialDO-15 housingPeriodic Peak Reverse Voltage - VRRM 6000 VContinuous current - IFAV 0.20 AReverse delay time - trr: 400 nsJunction temperature - Tjmax 150 °CSurge current - IFSM 27.00 AForward voltage - VF 6.00 VIF 0.20 AReverse current - IR 3,000 µAVR 6000 VLock layer capacity - CJ: PFVR V
- Type
HV6
- Product type
Si high voltage rectifier
- Enclosure
DO 15
- Manufacturer
Diotec
- Forward current I(F)
0.20 A
- Reverse voltage U(R)
6000 V
- Forward voltage U(F)
6 V
- Reverse leakage current I(r)
3 µA
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
27 A
- Reverse recovery time T(rr)
400 ns
- RoHS-compliant
Yes
- UKCA
yes
