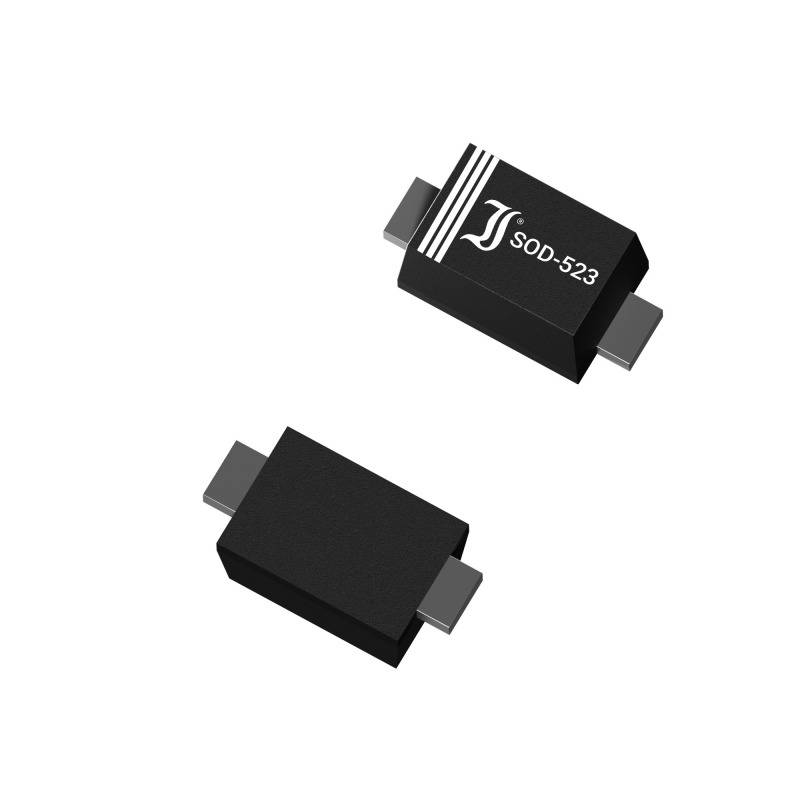

Image similar
Image similar
Diotec Small-signal diode BAS216WT-AQ SOD 523 75 V 0.15 A
Part number:
Item no:
Product type
Small-signal diode
Enclosure
SOD 523
Forward current I(F)
0.15 A
Reverse voltage U(R)
75 V
Forward voltage U(F)
1.25 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
750
-
€ 0.03315
2250
9% = € 0.00
€ 0.03013
3750
13% = € 0.00
€ 0.02892
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 750
Total (€ 0.03315 / piece)
€ 24.86
plus VAT.
Highlights & Details
Small-signal diode
Our service for you
Technical specifications
- Type SMDSOD 523 housingPeriodic Peak Reverse Voltage - VRRM 85 VContinuous current - IFAV 0.15 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 4 nsSurge current - IFSM 4.00 AForward voltage - VF 1.25 VIF 0.15 AReverse current - IR 1,000 µAVR 75 VLock layer capacity - CJ: PFVR V
- Type
BAS216WT-AQ
- Product type
Small-signal diode
- Enclosure
SOD 523
- Manufacturer
Diotec
- Forward current I(F)
0.15 A
- Reverse voltage U(R)
75 V
- Forward voltage U(F)
1.25 V
- Reverse leakage current I(r)
1 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
4 A
- Reverse recovery time T(rr)
4 ns
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2807273 Diotec Small-signal diode BAS216WT-AQ SOD 523 75 V 0.15 A
