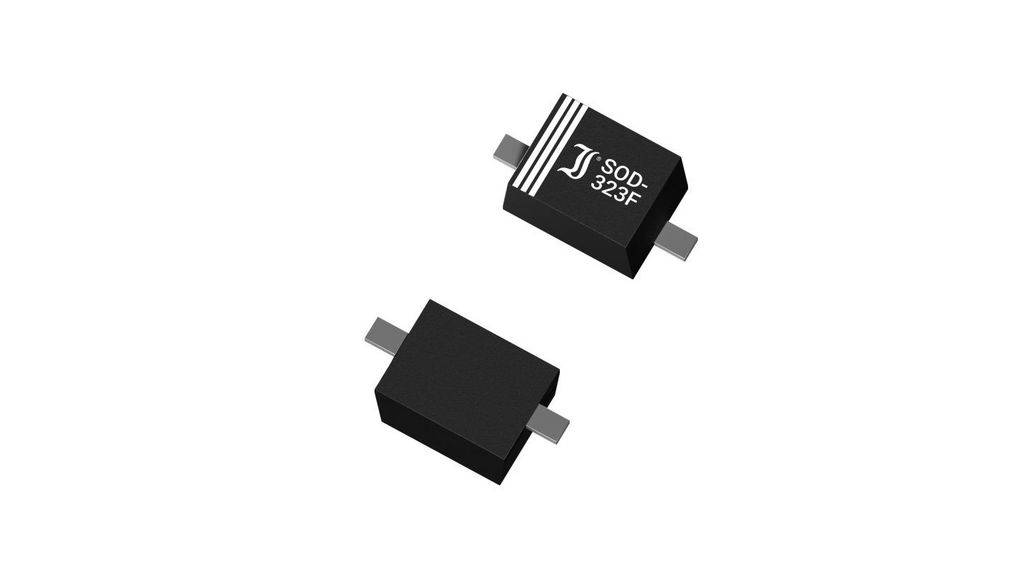

Diotec Small-signal diode BAV21WS SOD 323F 200 V 0.20 A
EAN:
Part number:
Item no:
Product type
Small-signal diode
Enclosure
SOD 323F
Forward current I(F)
0.20 A
Reverse voltage U(R)
200 V
Forward voltage U(F)
1.25 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1000
-
€ 0.02245
3000
9% = € 0.00
€ 0.02041
5000
13% = € 0.00
€ 0.01959
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 1000
Total (€ 0.02245 / piece)
€ 22.45
plus VAT.
Highlights & Details
Small-signal diode
Our service for you
Technical specifications
- Type SMDSOD 323F casingPeriodic Peak Reverse Voltage - VRRM 250 VContinuous current - IFAV 0.20 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 50 nsSurge current - IFSM 0.50 AForward voltage - VF 1.25 VIF 0.20 AReverse current - IR 0,100 µAVR 200 VLock layer capacity - CJ 5 pFVR 0 V
- Type
BAV21WS
- Product type
Small-signal diode
- Enclosure
SOD 323F
- Manufacturer
Diotec
- Forward current I(F)
0.20 A
- Reverse voltage U(R)
200 V
- Forward voltage U(F)
1.25 V
- Reverse leakage current I(r)
0.100 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
0.50 A
- Reverse recovery time T(rr)
50 ns
- RoHS-compliant
Yes
