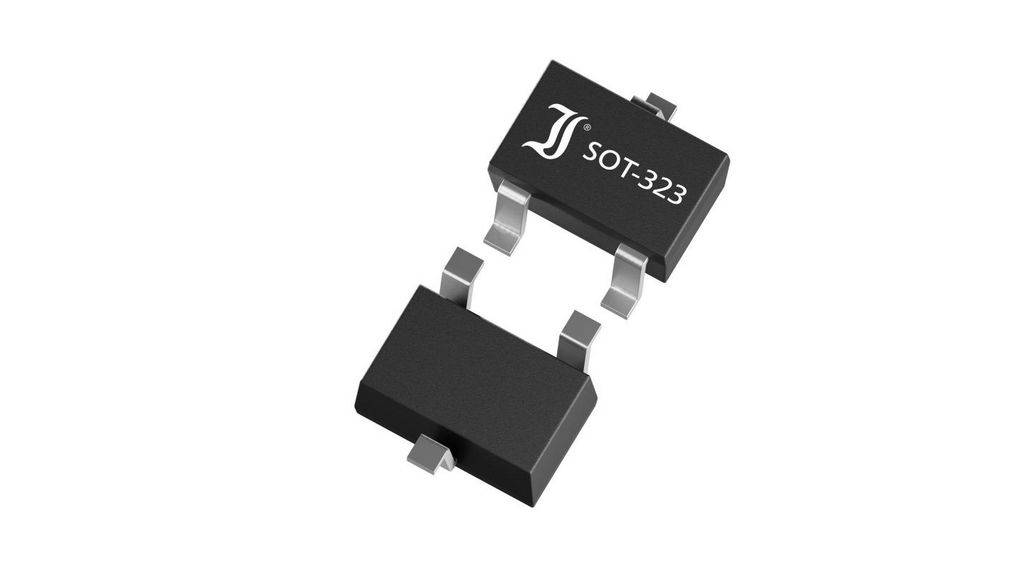

Image similar

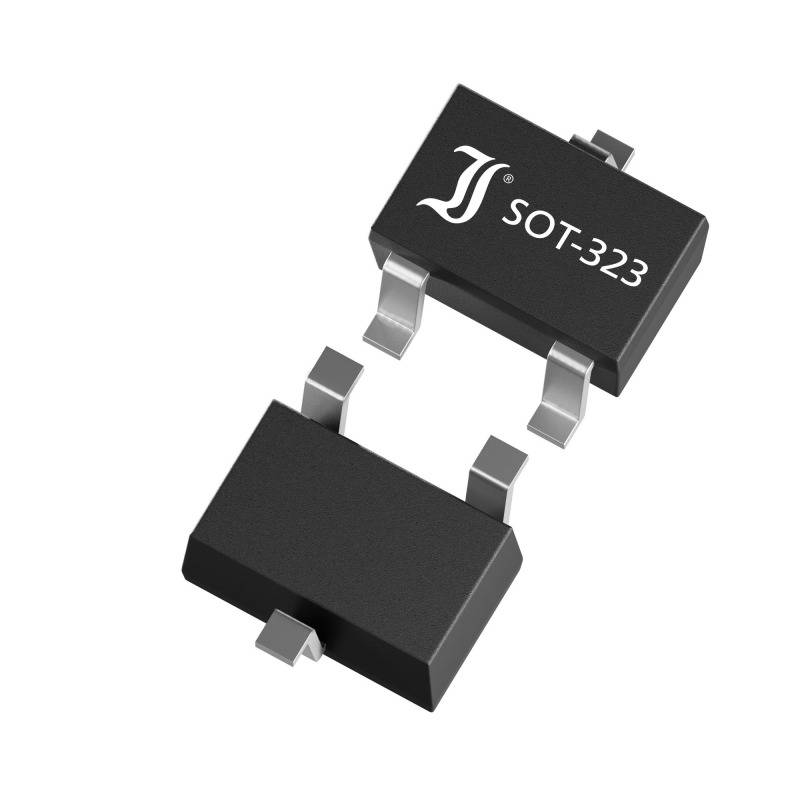

Image similar
Diotec Small-signal diode BAV99W SOT 323 70 V 0.15 A
EAN:
Part number:
Item no:
Product type
Small-signal diode
Enclosure
SOT 323
Forward current I(F)
0.15 A
Reverse voltage U(R)
70 V
Forward voltage U(F)
1.25 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1000
-
€ 0.02224
3000
9% = € 0.00
€ 0.02022
5000
13% = € 0.00
€ 0.01941
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.02224 / piece)
€ 22.24
plus VAT.
14 days return policy included
Technical specifications
- Type SMDSOT-323 housingPeriodic Peak Reverse Voltage - VRRM 85 VContinuous current - IFAV 0.20 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 4 nsSurge current - IFSM 0.50 AForward voltage - VF 1.25 VIF 0.15 AReverse current - IR 1,000 µAVR 70 VLock layer capacity - CJ: PFVR V
- Type
BAV99W
- Product type
Small-signal diode
- Enclosure
SOT 323
- Manufacturer
Diotec
- Forward current I(F)
0.15 A
- Reverse voltage U(R)
70 V
- Forward voltage U(F)
1.25 V
- Reverse leakage current I(r)
1 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
0.50 A
- Reverse recovery time T(rr)
4 ns
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2807324 Diotec Small-signal diode BAV99W SOT 323 70 V 0.15 A
User & Safety Instructions
User & Safety Instructions 2807324 Diotec Small-signal diode BAV99W SOT 323 70 V 0.15 A
