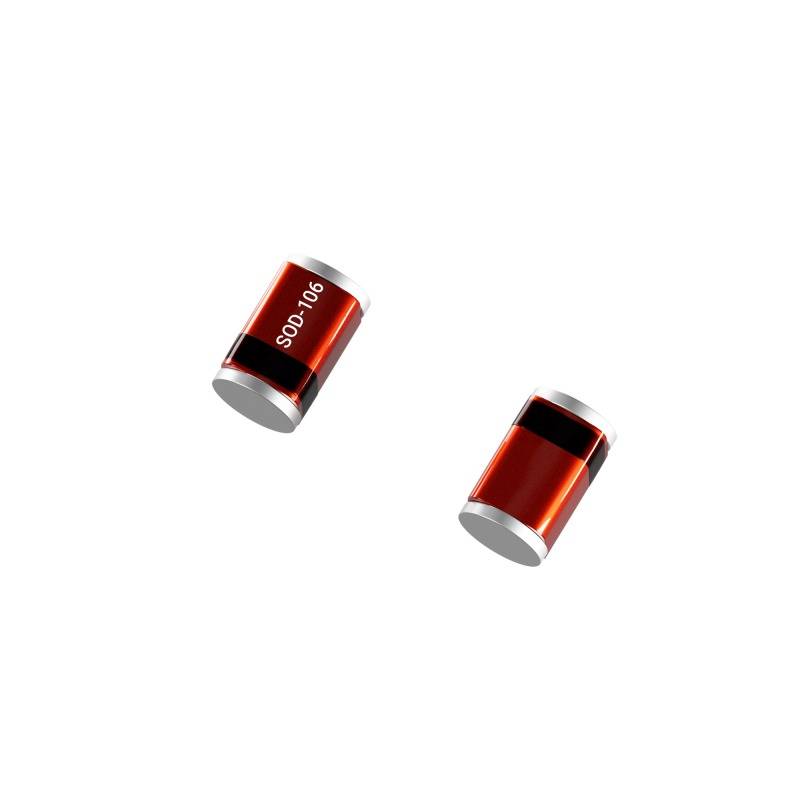

Image similar
Image similar
Diotec Small-signal diode MCL4448R13 Quadro MicroMelf 20 V 0.10 A
EAN:
Part number:
Item no:
Product type
Small-signal diode
Enclosure
Quadro MicroMelf
Forward current I(F)
0.10 A
Reverse voltage U(R)
20 V
Forward voltage U(F)
1 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
750
-
€ 0.02717
2250
9% = € 0.00
€ 0.02469
3750
13% = € 0.00
€ 0.02371
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 750
Total (€ 0.02717 / piece)
€ 20.38
plus VAT.
Highlights & Details
Small-signal diode
Our service for you
Technical specifications
- Type SMDHousing Quadro MicroMelfPeriodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 0.15 AJunction temperature - Tjmax 175 °CReverse delay time - trr: 4 nsSurge current - IFSM 2.00 AForward voltage - VF 1.00 VIF 0.10 AReverse current - IR 30,000 µAVR 20 VLock layer capacity - CJ 4 pFVR 0 V
- Type
MCL4448R13
- Product type
Small-signal diode
- Enclosure
Quadro MicroMelf
- Manufacturer
Diotec
- Forward current I(F)
0.10 A
- Reverse voltage U(R)
20 V
- Forward voltage U(F)
1 V
- Reverse leakage current I(r)
30 µA
- Operating temperature (max.)
175 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
2 A
- Reverse recovery time T(rr)
4 ns
- RoHS-compliant
Yes
