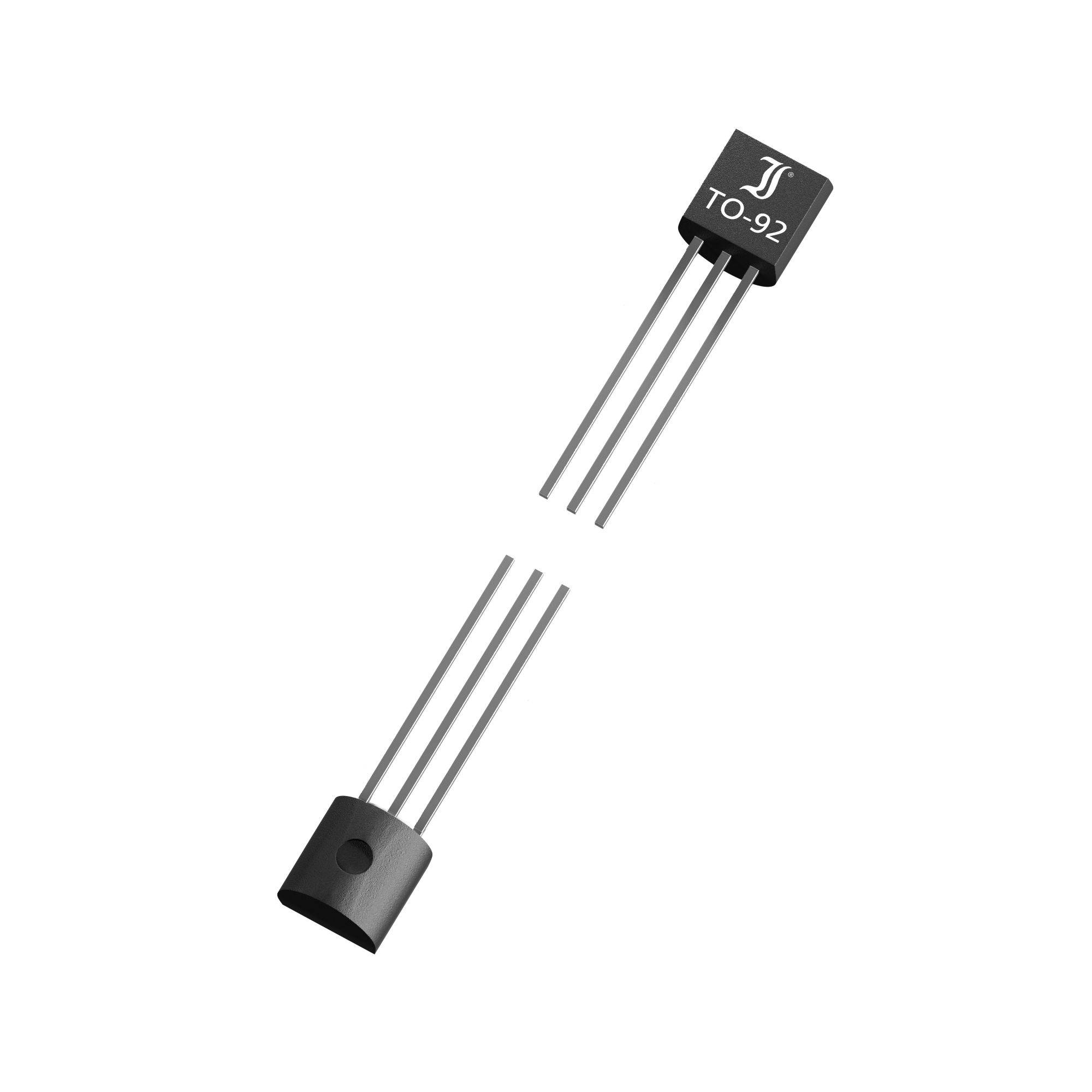

Diotec Transistor (BJT) - Discrete BC337-40BK TO-92BK NPN
Part number:
Item no:
Enclosure
TO-92BK
Type
NPN
Collector current
800 mA
Collector emitter voltage U(CEO)
45 V
Power (max) P(TOT)
0.625 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
100
-
€ 0.03967
300
9% = € 0.00
€ 0.03606
500
13% = € 0.01
€ 0.03461
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 100
Total (€ 0.03967 / piece)
€ 3.97
plus VAT.
Highlights & Details
Transistor (BJT) - Discrete
Our service for you
Technical specifications
- Type wire-leadCasing TO-92BK.Collector emitter voltage - VCEO 45 VDC collector current - IC: 800 mAPolarity - pin: NPNJunction temperature - Tjmax 150 °CPower loss - Ptot 0,625 W.Collector base current ratio - hfe: 400VCE 1 VIC 100 mACollector saturation voltage - VCEsat 700 mVIC 500 mAIB 50 mATransit frequency - ft:100 MHzIC 10 mAVCE 5 VF 50 MHz
- Type
BC337-40BK
- Enclosure
TO-92BK
- Manufacturer
Diotec
- Type
NPN
- Collector current
800 mA
- Collector emitter voltage U(CEO)
45 V
- Collector-emitter saturation voltage (max.)
700 mV
- Power (max) P(TOT)
0.625 W
- DC current gain (hFE)
400
- Transit frequency f(T)
50 MHz
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Content
1 pc(s)
- Operating temperature (max.)
150 °C
- Product type
Transistor (BJT) - Discrete
Documents & Downloads
Datasheet
Datasheet 2809150 Diotec Transistor (BJT) - Discrete BC337-40BK TO-92BK NPN
