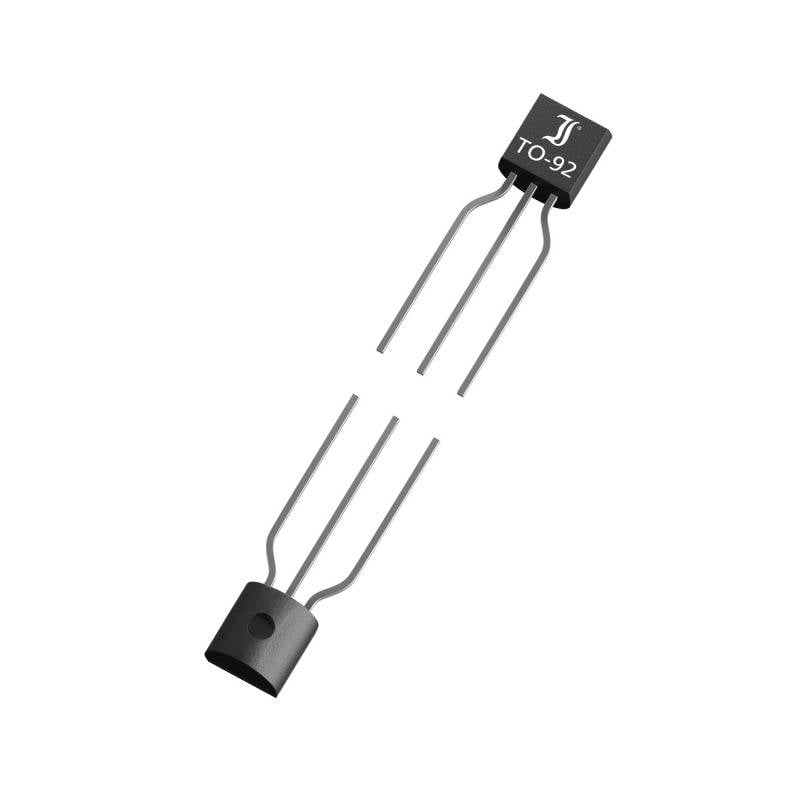

A three-legged electronic transistor (type TO-92), commonly used in circuits, with a black plastic casing.

Image similar

A three-legged electronic transistor (type TO-92), commonly used in circuits, with a black plastic casing.

Image similar

Enclosure

TO 92

Type

NPN

Collector current

800 mA

Collector emitter voltage U(CEO)

25 V

Power (max) P(TOT)

0.625 W

Datasheet (PDF)

English

Diotec

Fast track dispatch on Wed, 29 Jul

3509 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.02929 / piece)

€ 21.97

plus VAT.

Report legal concerns

Highlights & Details

BJT, TO-92, 25V, 800MA, NPN

Our service for you

Technical specifications

Type wire-leadHousing TO-92Collector emitter voltage - VCEO 25 VDC collector current - IC: 800 mAPolarity - pin: NPNJunction temperature - Tjmax 150 °CPower loss - Ptot 0,625 W.Collector base current ratio - hfe: 250VCE 1 VIC 100 mACollector saturation voltage - VCEsat 700 mVIC 500 mAIB 50 mATransit frequency - ft:100 MHzIC 10 mAVCE 5 VF 50 MHz

Type: BC338-25

Enclosure: TO 92

Manufacturer: Diotec

Type: NPN

Collector current: 800 mA

Collector emitter voltage U(CEO): 25 V

Collector-emitter saturation voltage (max.): 700 mV

Power (max) P(TOT): 0.625 W

DC current gain (hFE): 250

Transit frequency f(T): 50 MHz

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Content: 1 pc(s)

Operating temperature (max.): 150 °C

Product type: Transistor (BJT) - Discrete

Documents & Downloads

Datasheet

English

Datasheet 2809152 Diotec Transistor (BJT) - Discrete BC338-25 TO 92 NPN
