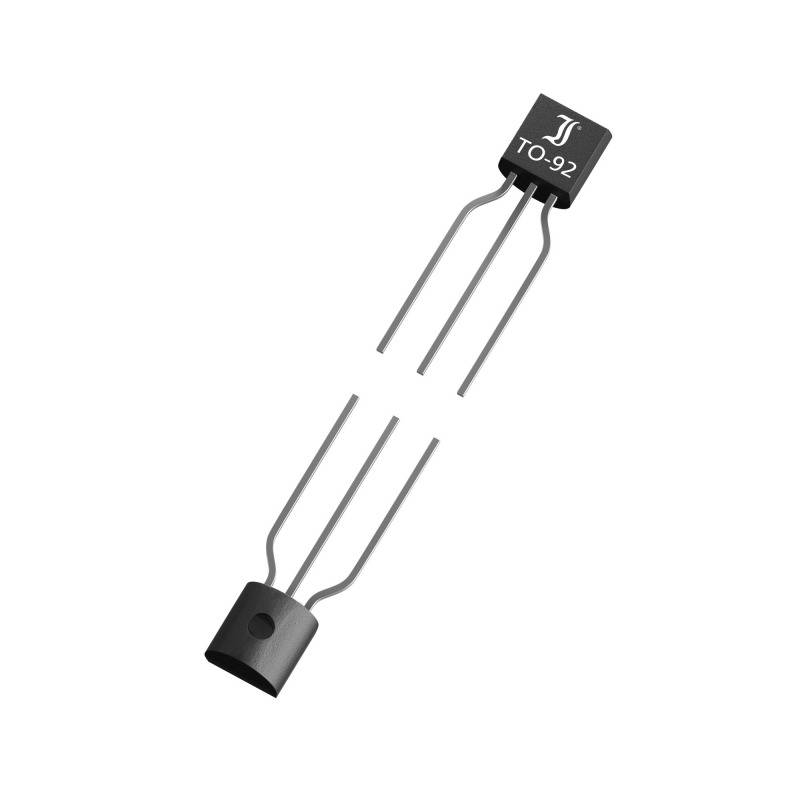

Diotec Transistor (BJT) - Discrete BC559B TO 92 PNP
Part number:
Item no:
Enclosure
TO 92
Type
PNP
Collector current
100 mA
Collector emitter voltage U(CEO)
30 V
Power (max) P(TOT)
0.5 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
25
-
€ 0.03027
75
9% = € 0.00
€ 0.02751
125
13% = € 0.00
€ 0.02641
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 25
Total (€ 0.03027 / piece)
€ 0.76
plus VAT.
Highlights & Details
Transistor (BJT) - Discrete
Our service for you
Technical specifications
- Type wire-leadHousing TO-92Collector emitter voltage - VCEO 30 VDC collector current - IC: 100 mAPolarity - pin PNPJunction temperature - Tjmax 150 °CPower loss - Ptot 0,500 W.Collector base current ratio - hfe: 200VCE 5 VIC 100 mACollector saturation voltage - VCEsat 250 mVIC 100 mAIB 5 mATransit frequency - ft:150 MHzIC 10 mAVCE 5 VF 100 MHz
- Type
BC559B
- Enclosure
TO 92
- Manufacturer
Diotec
- Type
PNP
- Collector current
100 mA
- Collector emitter voltage U(CEO)
30 V
- Collector-emitter saturation voltage (max.)
250 mV
- Power (max) P(TOT)
0.5 W
- DC current gain (hFE)
200
- Transit frequency f(T)
100 MHz
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Content
1 pc(s)
- Operating temperature (max.)
150 °C
- Product type
Transistor (BJT) - Discrete
Documents & Downloads
Datasheet
Datasheet 2809178 Diotec Transistor (BJT) - Discrete BC559B TO 92 PNP
