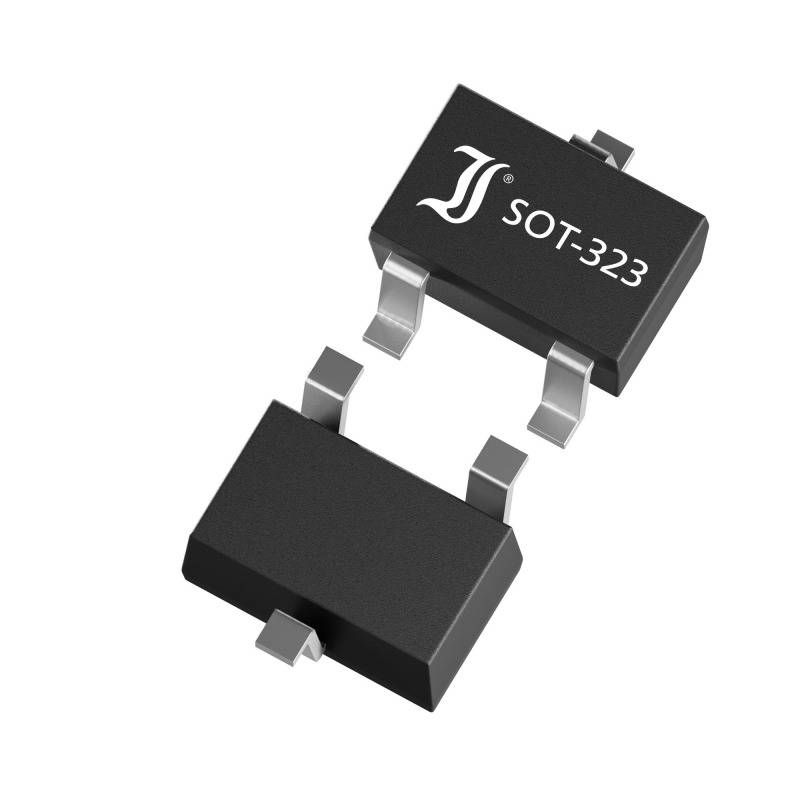

Image similar
Image similar
Diotec Transistor (BJT) - Discrete BC807-40W-AQ SOT 323 PNP
Part number:
Item no:
Product type
Transistor (BJT) - Discrete
Enclosure
SOT 323
Type
PNP
Collector current
500 mA
Collector emitter voltage U(CEO)
45 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
750
-
€ 0.03469
2250
9% = € 0.00
€ 0.03153
3750
13% = € 0.00
€ 0.03027
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 750
Total (€ 0.03469 / piece)
€ 26.02
plus VAT.
14-day return policy included
Highlights & Details
BJT, SOT-323, 45V, 500MA, PNP
Our service for you
Technical specifications
- Type SMDSOT-323 housingCollector emitter voltage - VCEO 45 VDC collector current - IC: 500 mAPolarity - pin PNPJunction temperature - Tjmax 150 °CPower loss - Ptot 0,200 W.Collector base current ratio - hfe: 400VCE 1 VIC 100 mACollector saturation voltage - VCEsat 700 mVIC 500 mAIB 50 mATransit frequency - ft:80 MHzIC 10 mAVCE 5 VF 50 MHz
- Type
BC807-40W-AQ
- Product type
Transistor (BJT) - Discrete
- Enclosure
SOT 323
- Manufacturer
Diotec
- Type
PNP
- Collector current
500 mA
- Collector emitter voltage U(CEO)
45 V
- Collector-emitter saturation voltage (max.)
700 mV
- Power (max) P(TOT)
0.2 W
- DC current gain (hFE)
400
- Transit frequency f(T)
50 MHz
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
- Operating temperature (max.)
150 °C
Documents & Downloads
Datasheet
Datasheet 2809190 Diotec Transistor (BJT) - Discrete BC807-40W-AQ SOT 323 PNP
