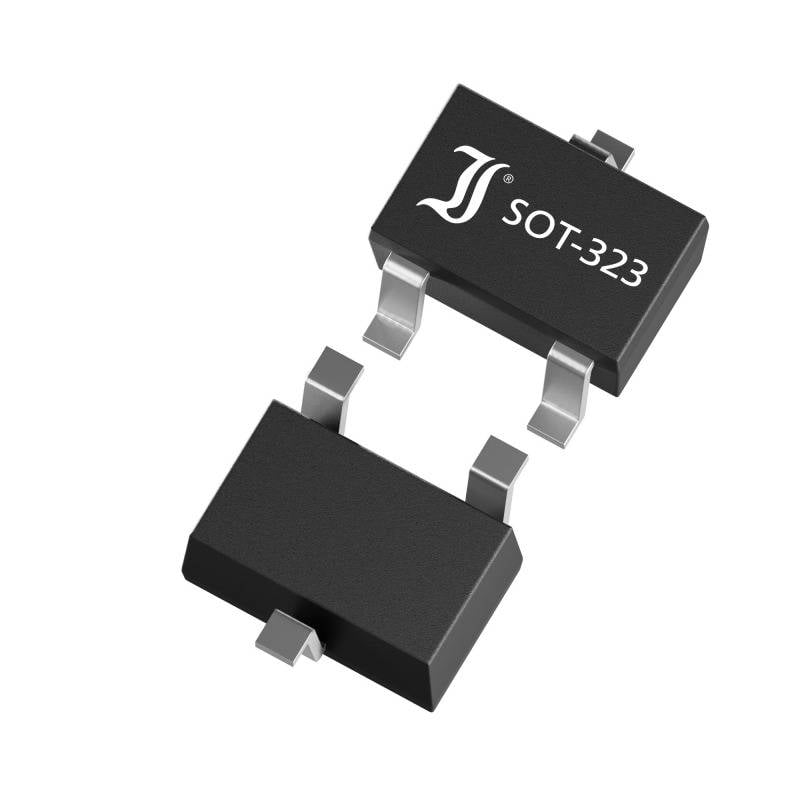

Diotec Transistor (BJT) - Discrete BC846CW SOT 323 NPN
EAN:
Part number:
Item no:
Product type
Transistor (BJT) - Discrete
Enclosure
SOT 323
Type
NPN
Collector current
100 mA
Collector emitter voltage U(CEO)
65 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
750
-
€ 0.03144
2250
9% = € 0.00
€ 0.02857
3750
13% = € 0.00
€ 0.02743
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 750
Total (€ 0.03144 / piece)
€ 23.58
plus VAT.
14-day return policy included
Technical specifications
- Type SMDSOT-323 housingCollector emitter voltage - VCEO 65 VDC collector current - IC: 100 mAPolarity - pin: NPNJunction temperature - Tjmax 150 °CPower loss - Ptot 0,200 W.Collector base current ratio - hfe: 520VCE 5 VIC 2 mACollector saturation voltage - VCEsat 600 mVIC 100 mAIB 5 mATransit frequency - ft:100 MHzIC 10 mAVCE 5 VF 100 MHz
- Type
BC846CW
- Product type
Transistor (BJT) - Discrete
- Enclosure
SOT 323
- Manufacturer
Diotec
- Type
NPN
- Collector current
100 mA
- Collector emitter voltage U(CEO)
65 V
- Collector-emitter saturation voltage (max.)
600 mV
- Power (max) P(TOT)
0.2 W
- DC current gain (hFE)
520
- Transit frequency f(T)
100 MHz
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
- Operating temperature (max.)
150 °C
- UKCA
yes
