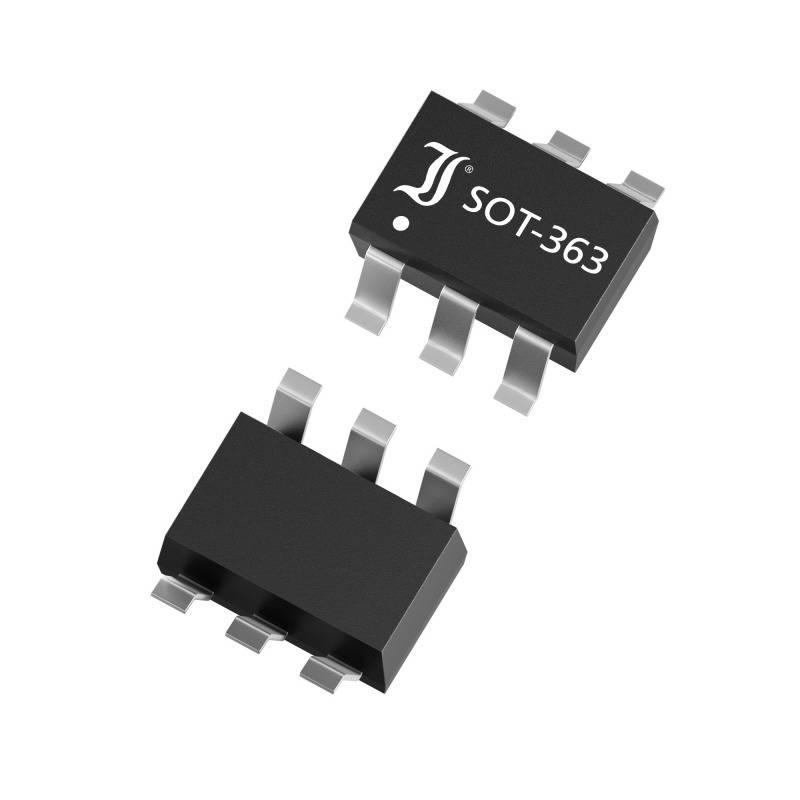

Diotec Transistor (BJT) - Discrete BC846PN-AQ SOT 363 NPN , PNP
Part number:
Item no:
Product type
Transistor (BJT) - Discrete
Enclosure
SOT 363
Type
NPN
PNP
Collector current
100 mA
Collector emitter voltage U(CEO)
65 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
500
-
€ 0.06223
1500
9% = € 0.01
€ 0.05655
2500
13% = € 0.01
€ 0.05429
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 500
Total (€ 0.06223 / piece)
€ 31.12
plus VAT.
14-day return policy included
Highlights & Details
BJT, SOT-363, 65V, 100MA, NPN+PNP
Our service for you
Technical specifications
- Type SMDSOT-363 housingCollector emitter voltage - VCEO 65 VDC collector current - IC: 100 mAPolarity - pin NPN+PNPJunction temperature - Tjmax 150 °CPower loss - Ptot 0,250 W.Collector base current ratio - hfe: 280VCE 5 VIC 2 mACollector saturation voltage - VCEsat 650 mVIC 100 mAIB 5 mATransit frequency - ft:100 MHzIC 5 mAVCE 10 VF 10 MHz
- Type
BC846PN-AQ
- Product type
Transistor (BJT) - Discrete
- Enclosure
SOT 363
- Manufacturer
Diotec
- Type
NPN
PNP
- Collector current
100 mA
- Collector emitter voltage U(CEO)
65 V
- Collector-emitter saturation voltage (max.)
650 mV
- Power (max) P(TOT)
0.25 W
- DC current gain (hFE)
280
- Transit frequency f(T)
10 MHz
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
- Operating temperature (max.)
150 °C
Documents & Downloads
Datasheet
Datasheet 2809220 Diotec Transistor (BJT) - Discrete BC846PN-AQ SOT 363 NPN , PNP
