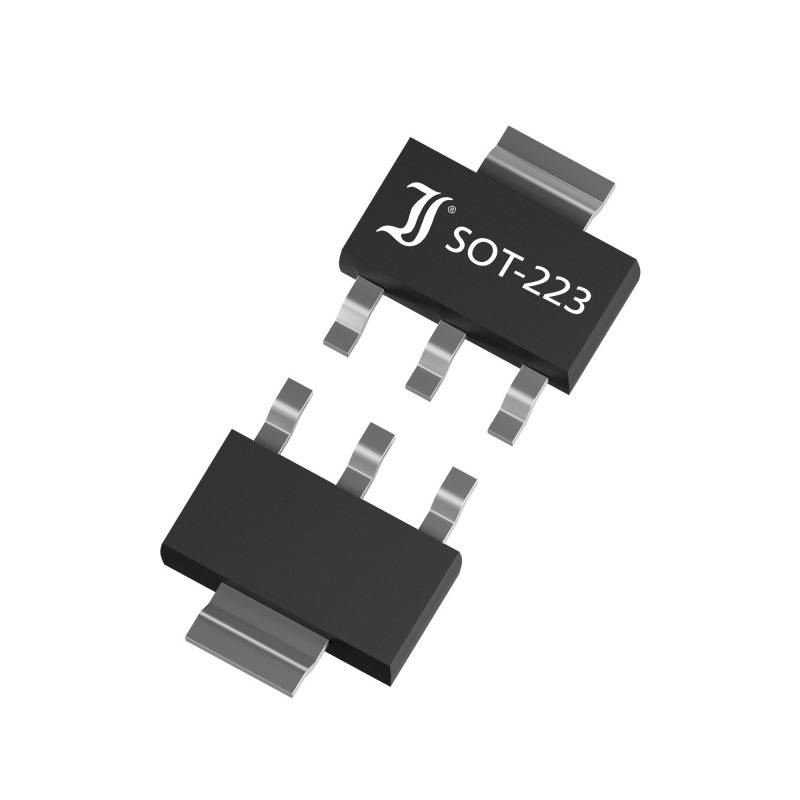

Image similar
Image similar
Diotec Transistor (BJT) - Discrete PZTA42 SOT 223 NPN
EAN:
Part number:
Item no:
Product type
Transistor (BJT) - Discrete
Enclosure
SOT 223
Type
NPN
Collector current
500 mA
Collector emitter voltage U(CEO)
300 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
200
-
€ 0.10245
600
9% = € 0.01
€ 0.09311
1000
13% = € 0.01
€ 0.08939
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 200
Total (€ 0.10245 / piece)
€ 20.49
plus VAT.
14-day return policy included
Technical specifications
- Type SMDSOT-223 housingCollector emitter voltage - VCEO 300 VDC collector current - IC: 500 mAPolarity - pin: NPNJunction temperature - Tjmax 150 °CPower loss - Ptot 1,500 W.Collector base current ratio - hfe: 40VCE 10 VIC 30 mACollector saturation voltage - VCEsat 500 mVIC 20 mAIB 2 mATransit frequency - ft:50 MHzIC 10 mAVCE 20 VF 100 MHz
- Type
PZTA42
- Product type
Transistor (BJT) - Discrete
- Enclosure
SOT 223
- Manufacturer
Diotec
- Type
NPN
- Collector current
500 mA
- Collector emitter voltage U(CEO)
300 V
- Collector-emitter saturation voltage (max.)
500 mV
- Power (max) P(TOT)
1.5 W
- DC current gain (hFE)
40
- Transit frequency f(T)
100 MHz
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
- Operating temperature (max.)
150 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2810500 Diotec Transistor (BJT) - Discrete PZTA42 SOT 223 NPN
