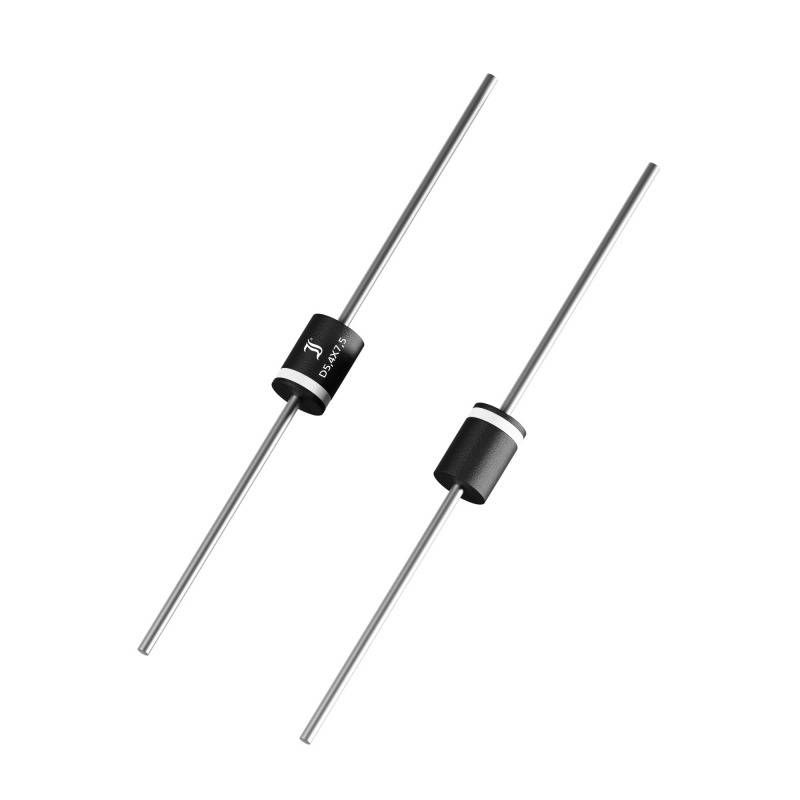

Image similar
Image similar
Diotec TVS diode 1.5KE16A D5.4x7.5 16.80 V 1500 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
D5.4x7.5
Reverse voltage U(R)
13.6 V
Terminal voltage U(CL)
22.50 V
Power (max) P(TOT)
1500 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
70
-
€ 0.27781
210
9% = € 0.03
€ 0.25250
350
13% = € 0.04
€ 0.24239
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.27781 / piece)
€ 19.45
plus VAT.
14-day return policy included
Technical specifications
- Type AxialHousing: D5.4x7.5Termination of voltage - VBRmin 15.20 VVBRmax 16.80 VIt 1 mAPulse power loss - PPPM 1500 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 13.6 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 22.50 VIPPM 70.00 ALock layer capacity - CJ: PFVR V
- Type
1.5KE16A
- Product type
TVS diode
- Enclosure
D5.4x7.5
- Manufacturer
Diotec
- Reverse voltage U(R)
13.6 V
- Breakdown voltage U(BR)
16.80 V
- Terminal voltage U(CL)
22.50 V
- Peak current I(pp)
70.00 A
- Power (max) P(TOT)
1500 W
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Operating temperature (max.)
175 °C
- UKCA
yes
