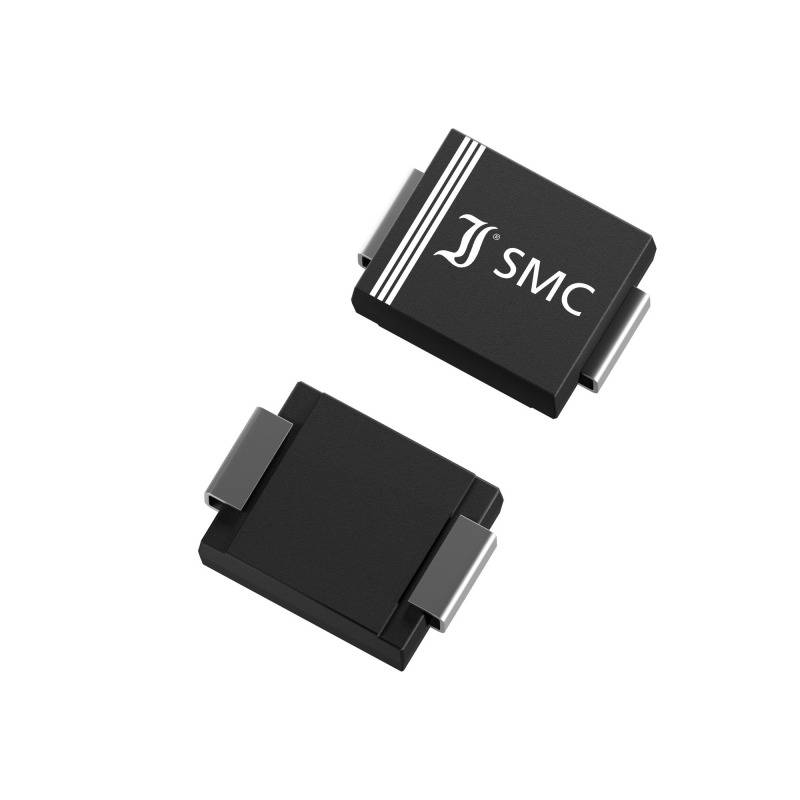

Image similar
Image similar
Diotec TVS diode 5.0SMCJ54CA DO 214AB 66.30 V 5000 W
EAN:
Part number:
Item no:
Enclosure
DO 214AB
Reverse voltage U(R)
54 V
Terminal voltage U(CL)
87.10 V
Power (max) P(TOT)
5000 W
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.56687
90
8% = € 0.05
€ 0.52124
150
11% = € 0.06
€ 0.50298
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.56687 / piece)
€ 17.01
plus VAT.
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDHOUSING DO-214AB/SMCTermination of voltage - VBRmin 60.00 VVBRmax 66.30 VIt 1 mAPulse power loss - PPPM 5000 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 54.0 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 87.10 VIPPM 57.40 ALock layer capacity - CJ: PFVR V
- Type
5.0SMCJ54CA
- Enclosure
DO 214AB
- Manufacturer
Diotec
- Reverse voltage U(R)
54 V
- Breakdown voltage U(BR)
66.30 V
- Terminal voltage U(CL)
87.10 V
- Peak current I(pp)
57.40 A
- Power (max) P(TOT)
5000 W
- Power line protection
Yes
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
- Product type
TVS diode
Documents & Downloads
Datasheet
Datasheet 2807024 Diotec TVS diode 5.0SMCJ54CA DO 214AB 66.30 V 5000 W
