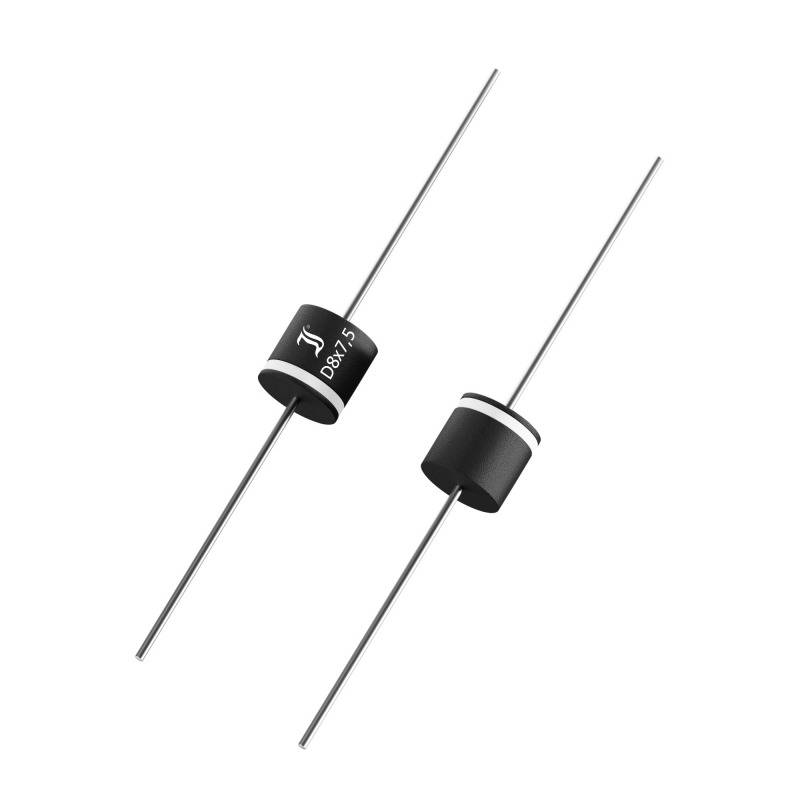

Diotec TVS diode 5KP22CA D8x7.5 28 V 5000 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
D8x7.5
Reverse voltage U(R)
22 V
Terminal voltage U(CL)
35.50 V
Power (max) P(TOT)
5000 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.66424
90
8% = € 0.05
€ 0.61076
150
11% = € 0.07
€ 0.58938
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.66424 / piece)
€ 19.93
plus VAT.
14-day return policy included
Technical specifications
- Type AxialHousing: D8x7.5Termination of voltage - VBRmin 24.40 VVBRmax 28.00 VIt 5 mAPulse power loss - PPPM 5000 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 22.0 VMaximum reverse current ID @ VWM: 10,000 µAMaximum limit voltage - VC 35.50 VIPPM 141.00 ALock layer capacity - CJ: PFVR V
- Type
5KP22CA
- Product type
TVS diode
- Enclosure
D8x7.5
- Manufacturer
Diotec
- Reverse voltage U(R)
22 V
- Breakdown voltage U(BR)
28 V
- Terminal voltage U(CL)
35.50 V
- Peak current I(pp)
141.00 A
- Power (max) P(TOT)
5000 W
- Power line protection
Yes
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Operating temperature (max.)
175 °C
- UKCA
yes
