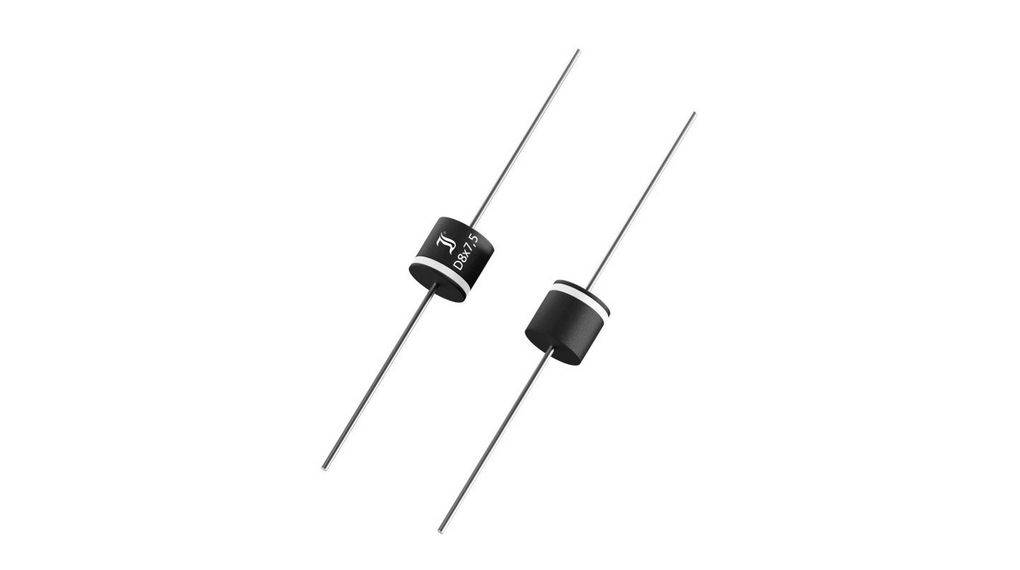

Image similar
Image similar
Diotec TVS diode 5KP24A D8x7.5 30.70 V 5 kW Tape
Part number:
Item no:
Packaging type
Tape
Enclosure
D8x7.5
Reverse voltage U(R)
24 V
Terminal voltage U(CL)
38.9 V
Power (max) P(TOT)
5 kW
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
40
-
€ 1.59666
120
8% = € 0.13
€ 1.46813
200
11% = € 0.18
€ 1.41672
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 40
Total (€ 1.59666 / piece)
€ 63.87
plus VAT.
Technical specifications
- Type AxialHousing: D8x7.5Termination of voltage - VBRmin 26.70 VVBRmax 30.70 VIt 5 mAPulse power loss - PPPM 5000 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 24.0 VMaximum reverse current ID @ VWM: 10,000 µAMaximum limit voltage - VC 38.90 VIPPM 129.00 ALock layer capacity - CJ: PFVR V
- Packaging type
Tape
- Type
5KP24A
- Enclosure
D8x7.5
- Manufacturer
Diotec
- Reverse voltage U(R)
24 V
- Breakdown voltage U(BR)
30.70 V
- Terminal voltage U(CL)
38.9 V
- Peak current I(pp)
129 A
- Power (max) P(TOT)
5 kW
- Polarity
Unidirectional
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Operating temperature (max.)
175 °C
- Operating temperature (min.)
-50 °C
- Product type
TVS diode
Documents & Downloads
Datasheet
Datasheet 2807108 Diotec TVS diode 5KP24A D8x7.5 30.70 V 5 kW Tape
