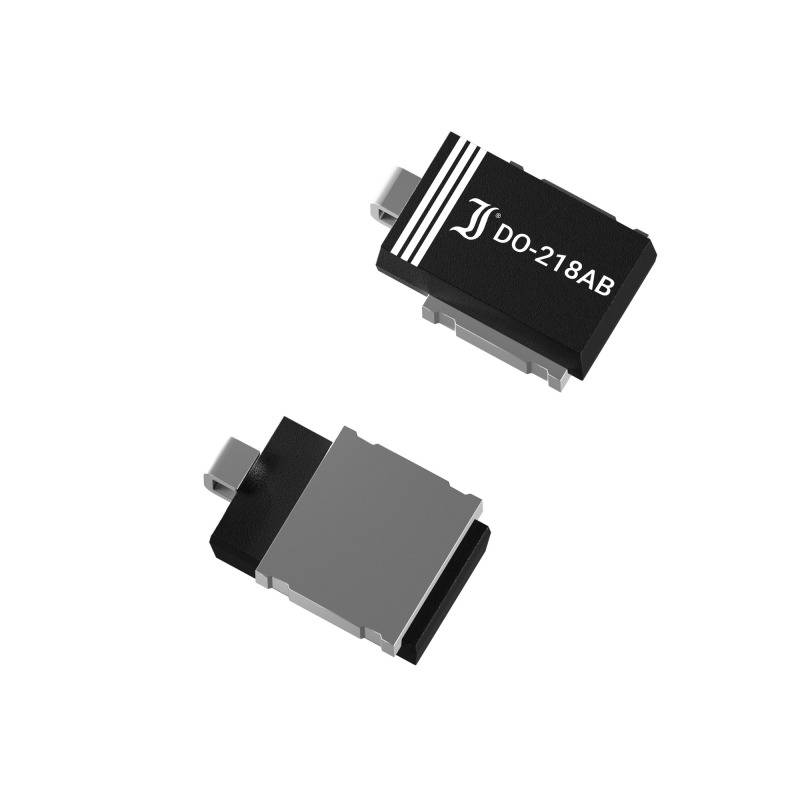

Image similar
Image similar
Diotec TVS diode 6.6SM8Z11A-AQ DO 218AB 13.50 V 6600 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
DO 218AB
Reverse voltage U(R)
11 V
Power (max) P(TOT)
6600 W
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 1.78884
60
8% = € 0.14
€ 1.64484
100
11% = € 0.20
€ 1.58724
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 1.78884 / piece)
€ 35.78
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDHousing DO-218ABTermination of voltage - VBRmin 12.20 VVBRmax 13.50 VIt 5 mAPulse power loss - PPPM 6600 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 11.0 VMaximum reverse current ID @ VWM: 10,000 µAMaximum limit voltage - VC 18.20 VIPPM 363.00 ALock layer capacity - CJ: PFVR V
- Type
6.6SM8Z11A-AQ
- Product type
TVS diode
- Enclosure
DO 218AB
- Manufacturer
Diotec
- Reverse voltage U(R)
11 V
- Breakdown voltage U(BR)
13.50 V
- Peak current I(pp)
363.00 A
- Power (max) P(TOT)
6600 W
- Power line protection
Yes
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
175 °C
