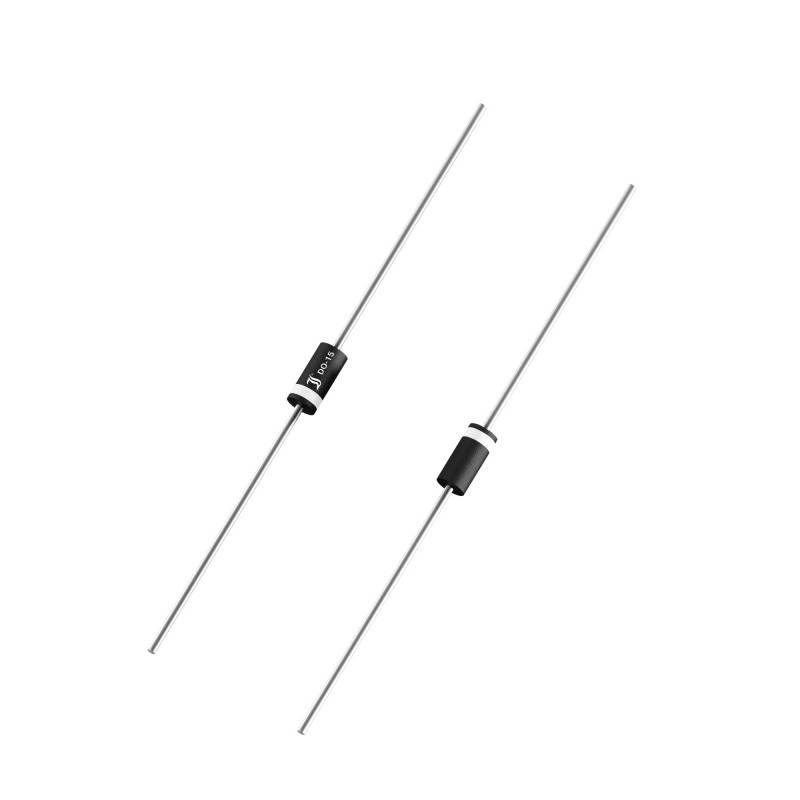

Diotec TVS diode BZW04-19 DO 15 23.10 V 400 W
Part number:
Item no:
Enclosure
DO 15
Reverse voltage U(R)
18.8 V
Terminal voltage U(CL)
30.60 V
Power (max) P(TOT)
400 W
Mounting type
Through-hole mounting
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
200
-
€ 0.12490
600
9% = € 0.01
€ 0.11352
1000
13% = € 0.02
€ 0.10897
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 200
Total (€ 0.1249 / piece)
€ 24.98
plus VAT.
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type AxialDO-15 housingTermination of voltage - VBRmin 20.90 VVBRmax 23.10 VIt 1 mAPulse power loss - PPPM 400 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 18.8 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 30.60 VIPPM 13.00 ALock layer capacity - CJ: PFVR V
- Type
BZW04-19
- Enclosure
DO 15
- Manufacturer
Diotec
- Manuf. code
DIA
- Reverse voltage U(R)
18.8 V
- Breakdown voltage U(BR)
23.10 V
- Terminal voltage U(CL)
30.60 V
- Peak current I(pp)
13.00 A
- Power (max) P(TOT)
400 W
- Power line protection
Yes
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Operating temperature (max.)
175 °C
- Product type
TVS diode
Documents & Downloads
Datasheet
Datasheet 2807418 Diotec TVS diode BZW04-19 DO 15 23.10 V 400 W
