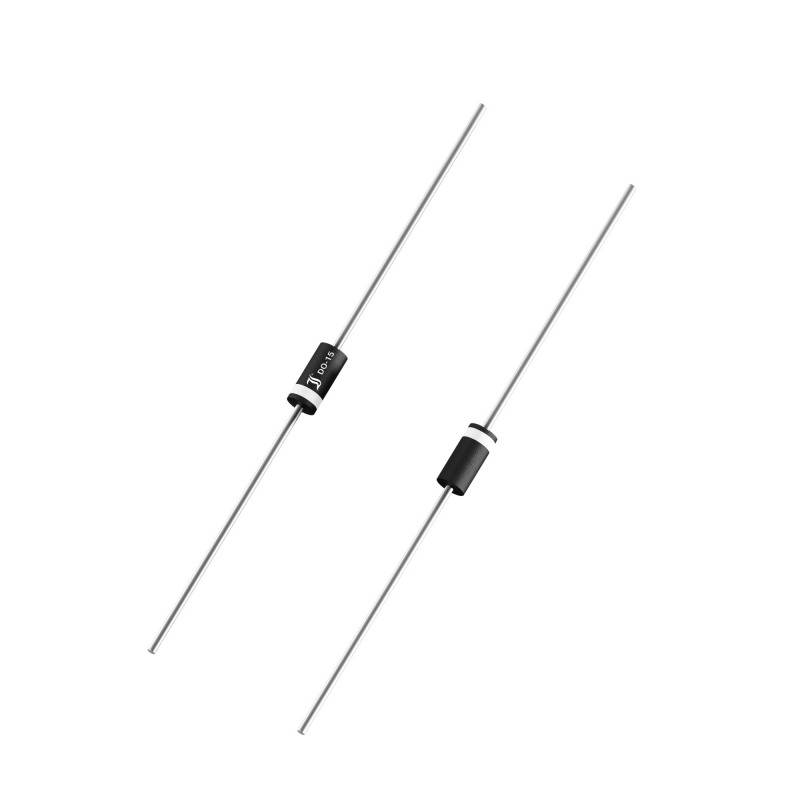

Image similar
Image similar
Diotec TVS diode BZW04-273B DO 15 336 V 400 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
DO 15
Reverse voltage U(R)
273 V
Power (max) P(TOT)
400 W
Mounting type
Through-hole mounting
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
80
-
€ 0.24808
240
9% = € 0.02
€ 0.22548
400
13% = € 0.03
€ 0.21645
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 80
Total (€ 0.24808 / piece)
€ 19.85
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type AxialDO-15 housingTermination of voltage - VBRmin 304.00 VVBRmax 336.00 VIt 1 mAPulse power loss - PPPM 400 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 273.0 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 438.00 VIPPM 1.00 ALock layer capacity - CJ: PFVR V
- Type
BZW04-273B
- Product type
TVS diode
- Enclosure
DO 15
- Manufacturer
Diotec
- Reverse voltage U(R)
273 V
- Breakdown voltage U(BR)
336 V
- Peak current I(pp)
1.00 A
- Power (max) P(TOT)
400 W
- Power line protection
Yes
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Operating temperature (max.)
175 °C
Documents & Downloads
Datasheet
Datasheet 2807437 Diotec TVS diode BZW04-273B DO 15 336 V 400 W
