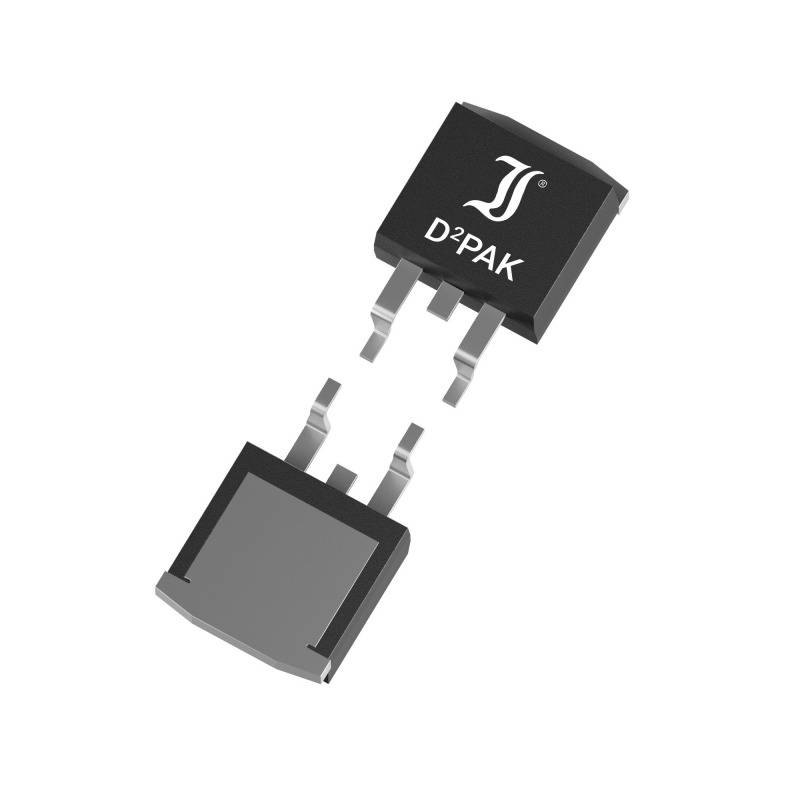

Electronic component in a D²PAK package with three connection legs, used for mounting on printed circuit boards.

Image similar

Electronic component in a D²PAK package with three connection legs, used for mounting on printed circuit boards.

Image similar

Enclosure

TO 263AB

Reverse voltage U(R)

22 V

Mounting type

Surface-mount

Product type

TVS diode

Type

LDP01-26AYD2-AQ

Datasheet (PDF)

English

Diotec

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 0.87861 / piece)

€

Report legal concerns

Technical specifications

Type SMDHOUSING: TO-263AB/D2PAKTermination of voltage - VBRmin 24.40 VVBRmax 28.00 VIt 5 mAPulse power loss - PPPM 5000 WJunction temperature - Tjmax 175 °CReverse voltage - VWM 22.0 VMaximum reverse current ID @ VWM: 10,000 µAMaximum limit voltage - VC 35.50 VIPPM 141.00 ALock layer capacity - CJ: PFVR V

Type: LDP01-26AYD2-AQ

Enclosure: TO 263AB

Manufacturer: Diotec

Reverse voltage U(R): 22 V

Breakdown voltage U(BR): 28 V

Mounting type: Surface-mount

RoHS-compliant: Yes

Product type: TVS diode

Documents & Downloads

Datasheet

English

Datasheet 2807835 Diotec TVS diode LDP01-26AYD2-AQ TO 263AB 28 V
