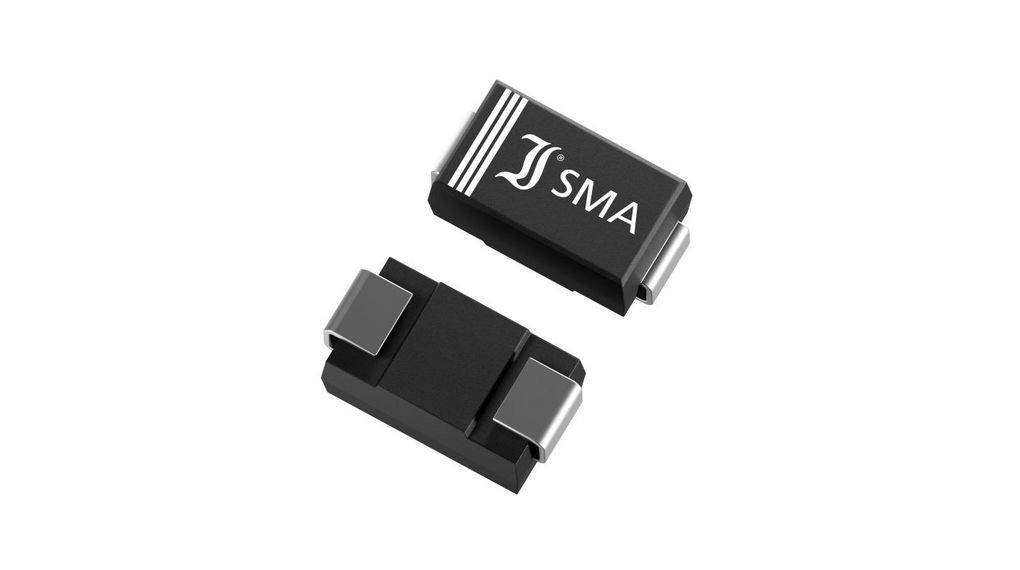

Image similar
Image similar
Diotec TVS diode P4SMAJ16CA DO 214AC 19.80 V 400 W #####Tape and Reel
EAN:
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
TVS diode
Enclosure
DO 214AC
Reverse voltage U(R)
16 V
Terminal voltage U(CL)
26 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.07871
750
9% = € 0.01
€ 0.07154
1250
13% = € 0.01
€ 0.06867
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.07871 / piece)
€ 19.68
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDHOUSING: DO-214AC/SMATermination of voltage - VBRmin 17.80 VVBRmax 19.80 VIt 1 mAPulse power loss - PPPM 400 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 16.0 VMaximum reverse current ID @ VWM: 5,000 µAMaximum limit voltage - VC 26.00 VIPPM 15.40 ALock layer capacity - CJ: PFVR V
- Packaging type
#####Tape and Reel
- Type
P4SMAJ16CA
- Product type
TVS diode
- Enclosure
DO 214AC
- Manufacturer
Diotec
- Reverse voltage U(R)
16 V
- Breakdown voltage U(BR)
19.80 V
- Terminal voltage U(CL)
26 V
- Peak current I(pp)
15.4 A
- Power (max) P(TOT)
400 W
- Polarity
Bidirectional
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
- Operating temperature (min.)
-50 °C
