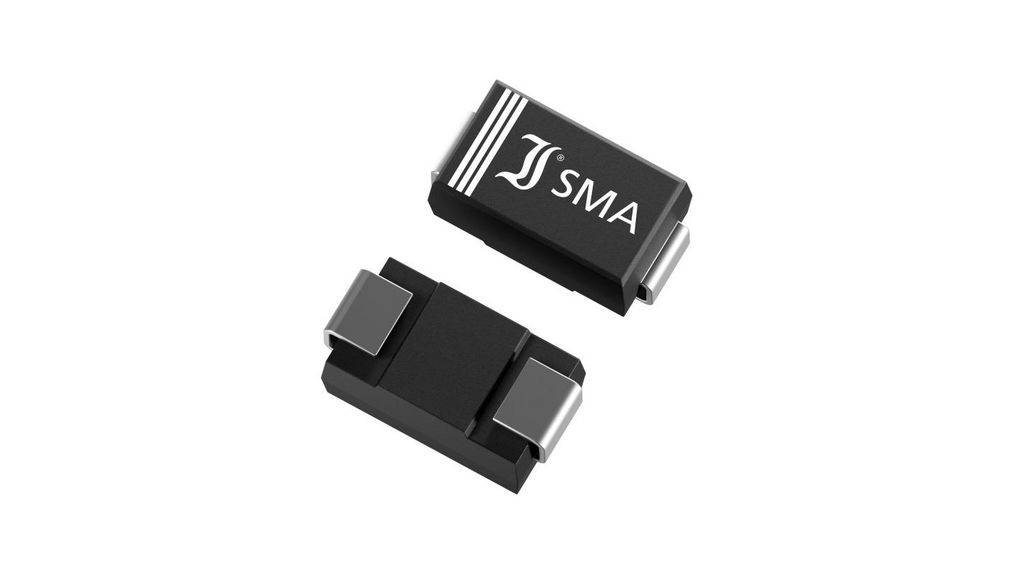

Diotec TVS diode P4SMAJ5.0A DO 214AC 7 V 400 W #####Tape and Reel
EAN:
Part number:
Item no:
Packaging type
#####Tape and Reel
Enclosure
DO 214AC
Reverse voltage U(R)
5 V
Terminal voltage U(CL)
9.2 V
Power (max) P(TOT)
400 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
300
-
€ 0.07464
900
9% = € 0.01
€ 0.06784
1500
13% = € 0.01
€ 0.06513
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.07464 / piece)
€ 22.39
plus VAT.
Technical specifications
- Type SMDHOUSING: DO-214AC/SMATermination of voltage - VBRmin 6.40 VVBRmax 7.00 VIt 10 mAPulse power loss - PPPM 400 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 5.0 VMaximum reverse current ID @ VWM: 800,000 µAMaximum limit voltage - VC 9.20 VIPPM 43.50 ALock layer capacity - CJ: PFVR V
- Packaging type
#####Tape and Reel
- Type
P4SMAJ5.0A
- Enclosure
DO 214AC
- Manufacturer
Diotec
- Manuf. code
DIA
- Reverse voltage U(R)
5 V
- Breakdown voltage U(BR)
7 V
- Terminal voltage U(CL)
9.2 V
- Peak current I(pp)
43.5 A
- Power (max) P(TOT)
400 W
- Polarity
Unidirectional
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
- Operating temperature (min.)
-50 °C
- UKCA
yes
- Product type
TVS diode
