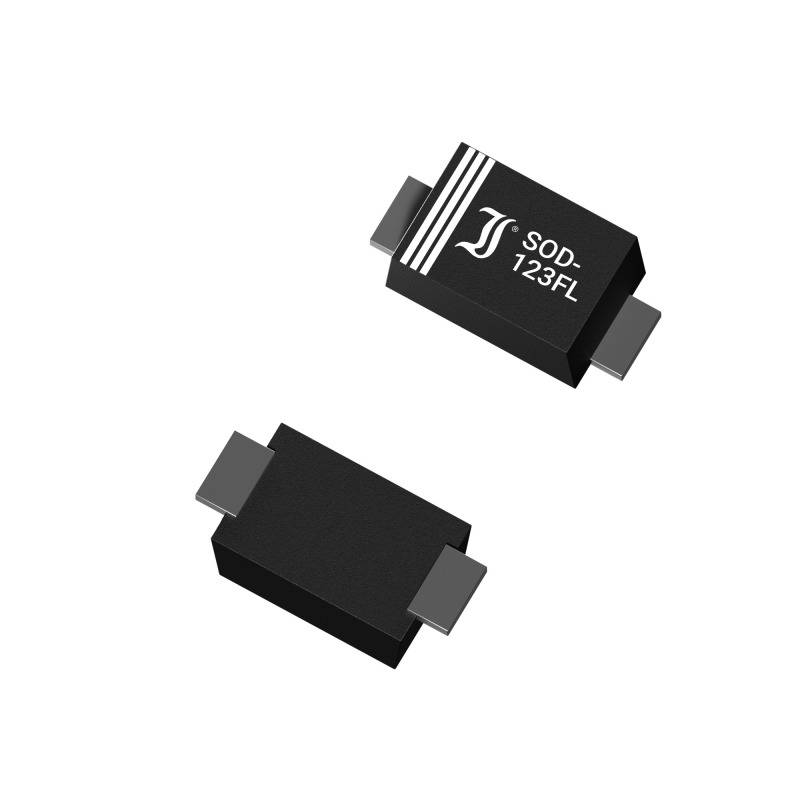

Diotec TVS diode SMF45CA SOD 123FL 55.30 V 200 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
SOD 123FL
Reverse voltage U(R)
45 V
Power (max) P(TOT)
200 W
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.07261
15
9% = € 0.01
€ 0.06599
25
13% = € 0.01
€ 0.06334
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.07261 / piece)
€ 0.36
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDSOD 123FL housingTermination of voltage - VBRmin 50.00 VVBRmax 55.30 VIt 1 mAPulse power loss - PPPM 200 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 45.0 VMaximum reverse current ID @ VWM: 1,000 µAMaximum limit voltage - VC 72.70 VIPPM 2.75 ALock layer capacity - CJ: PFVR V
- Type
SMF45CA
- Product type
TVS diode
- Enclosure
SOD 123FL
- Manufacturer
Diotec
- Reverse voltage U(R)
45 V
- Breakdown voltage U(BR)
55.30 V
- Peak current I(pp)
2.75 A
- Power (max) P(TOT)
200 W
- Power line protection
Yes
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
