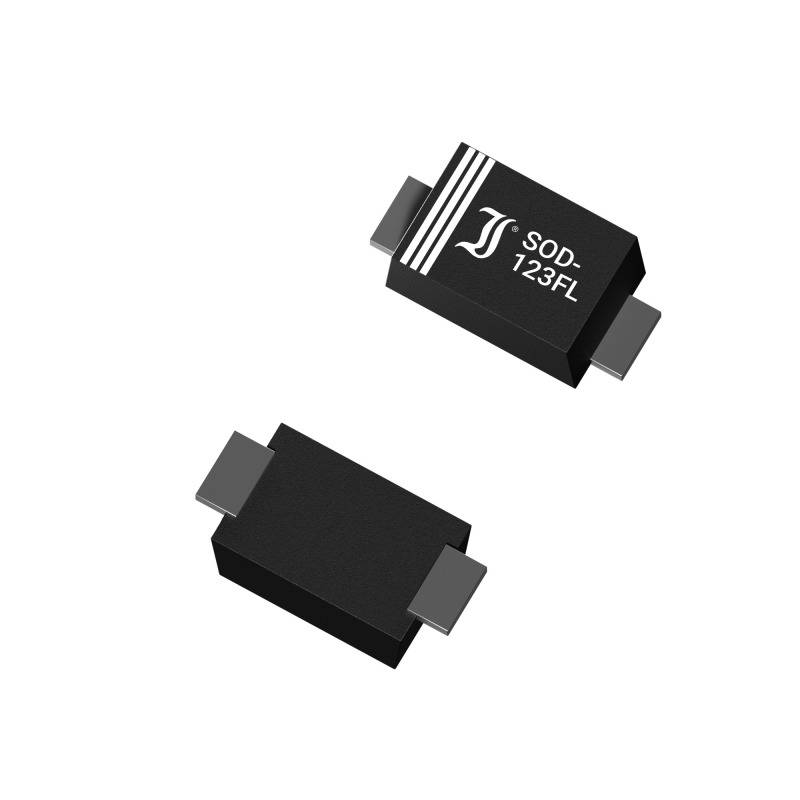

Image similar
Image similar
Diotec TVS diode SMF7.0A SOD 123FL 8.60 V 200 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
SOD 123FL
Reverse voltage U(R)
7 V
Power (max) P(TOT)
200 W
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.03786
750
9% = € 0.00
€ 0.03441
1250
13% = € 0.00
€ 0.03303
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.03786 / piece)
€ 9.47
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDSOD 123FL housingTermination of voltage - VBRmin 7.70 VVBRmax 8.60 VIt 10 mAPulse power loss - PPPM 200 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 7.0 VMaximum reverse current ID @ VWM: 100,000 µAMaximum limit voltage - VC 12.00 VIPPM 16.67 ALock layer capacity - CJ: PFVR V
- Type
SMF7.0A
- Product type
TVS diode
- Enclosure
SOD 123FL
- Manufacturer
Diotec
- Reverse voltage U(R)
7 V
- Breakdown voltage U(BR)
8.60 V
- Peak current I(pp)
16.67 A
- Power (max) P(TOT)
200 W
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
