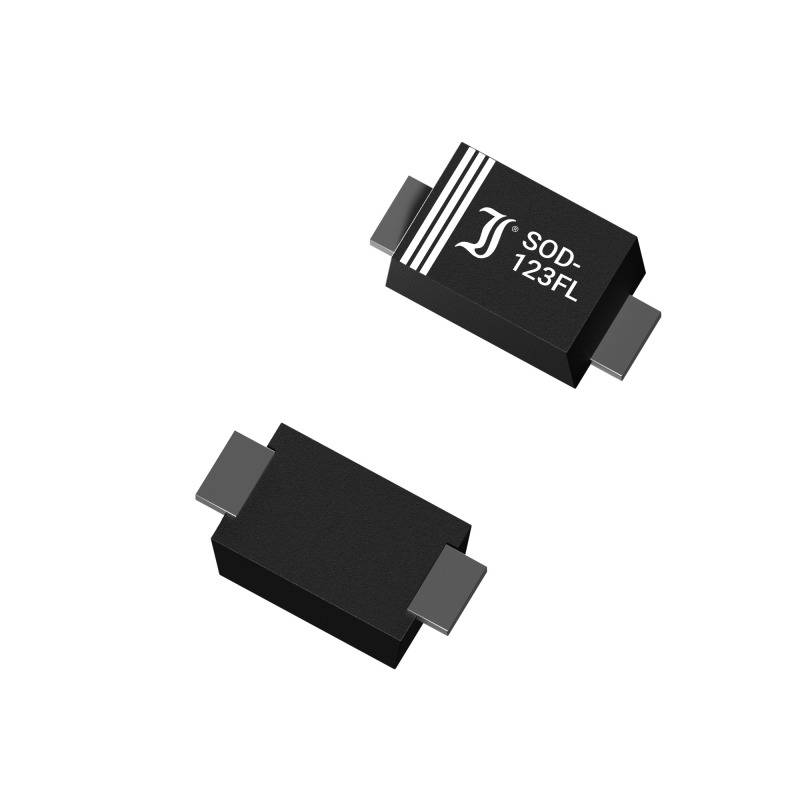

Diotec TVS diode SMF70CA SOD 123FL 86 V 200 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
SOD 123FL
Reverse voltage U(R)
70 V
Terminal voltage U(CL)
113.00 V
Power (max) P(TOT)
200 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.03571
750
9% = € 0.00
€ 0.03246
1250
13% = € 0.00
€ 0.03116
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.03571 / piece)
€ 8.93
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDSOD 123FL housingTermination of voltage - VBRmin 77.80 VVBRmax 86.00 VIt 1 mAPulse power loss - PPPM 200 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 70.0 VMaximum reverse current ID @ VWM: 1,000 µAMaximum limit voltage - VC 113.00 VIPPM 1.77 ALock layer capacity - CJ: PFVR V
- Type
SMF70CA
- Product type
TVS diode
- Enclosure
SOD 123FL
- Manufacturer
Diotec
- Reverse voltage U(R)
70 V
- Breakdown voltage U(BR)
86 V
- Terminal voltage U(CL)
113.00 V
- Peak current I(pp)
1.77 A
- Power (max) P(TOT)
200 W
- Power line protection
Yes
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
Documents & Downloads
Datasheet
Datasheet 2810861 Diotec TVS diode SMF70CA SOD 123FL 86 V 200 W
User & Safety Instructions
User & Safety Instructions 2810861 Diotec TVS diode SMF70CA SOD 123FL 86 V 200 W
