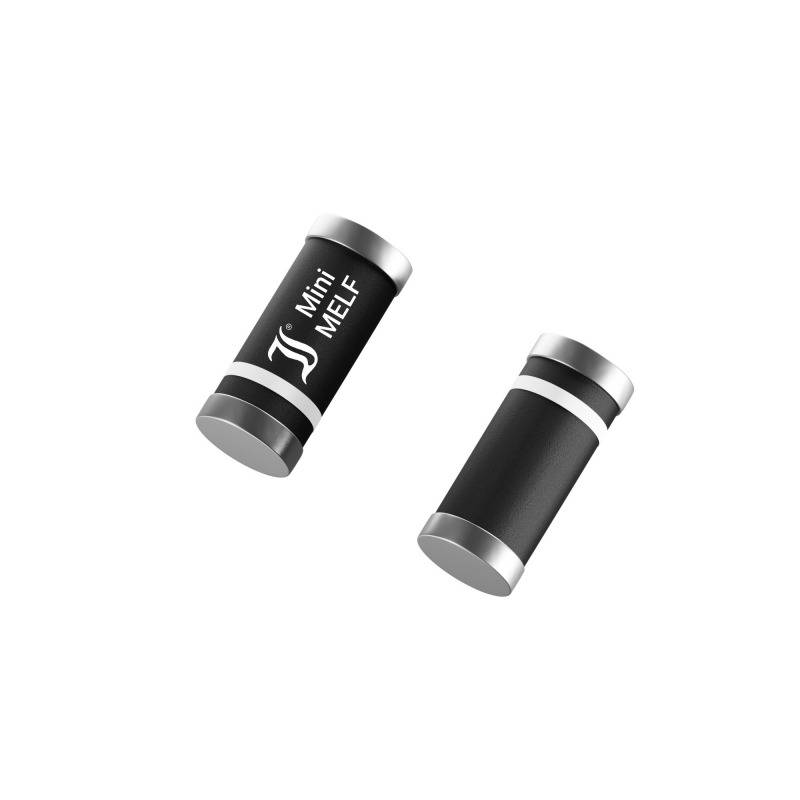

Image similar
Image similar
Diotec TVS diode TGL34-10A DO 213AA 10.50 V
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
DO 213AA
Reverse voltage U(R)
8.5 V
Terminal voltage U(CL)
14.50 V
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.07208
750
9% = € 0.01
€ 0.06551
1250
13% = € 0.01
€ 0.06288
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.07208 / piece)
€ 18.02
plus VAT.
14-day return policy included
Technical specifications
- Type SMDHousing DO-213AA/MiniMelfTermination of voltage - VBRmin 9.50 VVBRmax 10.50 VIt 1 mAPulse power loss - PPPM 150 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 8.5 VMaximum reverse current ID @ VWM: 10,000 µAMaximum limit voltage - VC 14.50 VIPPM 10.30 ALock layer capacity - CJ: PFVR V
- Type
TGL34-10A
- Product type
TVS diode
- Enclosure
DO 213AA
- Manufacturer
Diotec
- Reverse voltage U(R)
8.5 V
- Breakdown voltage U(BR)
10.50 V
- Terminal voltage U(CL)
14.50 V
- Peak current I(pp)
10.30 A
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
- UKCA
yes
