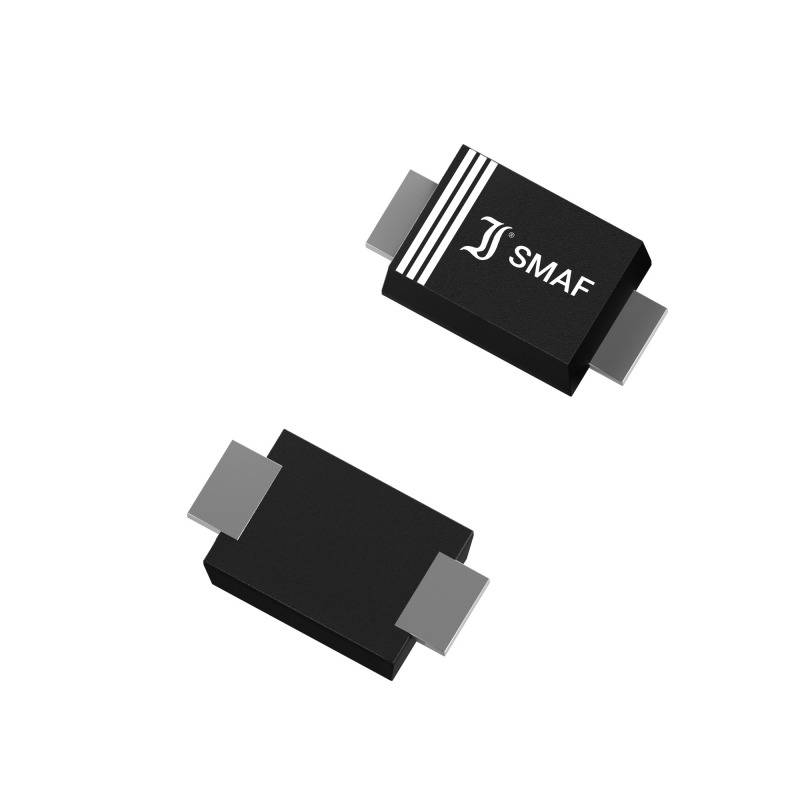

Diotec TVS diode TPSMA6L20A SMAF 24.50 V
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
SMAF
Reverse voltage U(R)
20 V
Mounting type
Surface-mount
Type
TPSMA6L20A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.07698
750
9% = € 0.01
€ 0.06997
1250
13% = € 0.01
€ 0.06717
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.07698 / piece)
€ 19.25
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDSMAF housingTermination of voltage - VBRmin 22.20 VVBRmax 24.50 VIt 1 mAPulse power loss - PPPM 600 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 20.0 VMaximum reverse current ID @ VWM: 1,000 µAMaximum limit voltage - VC 32.40 VIPPM 18.50 ALock layer capacity - CJ: PFVR V
- Type
TPSMA6L20A
- Product type
TVS diode
- Enclosure
SMAF
- Manufacturer
Diotec
- Reverse voltage U(R)
20 V
- Breakdown voltage U(BR)
24.50 V
- Peak current I(pp)
18.50 A
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
Documents & Downloads
Datasheet
Datasheet 2811319 Diotec TVS diode TPSMA6L20A SMAF 24.50 V
User & Safety Instructions
User & Safety Instructions 2811319 Diotec TVS diode TPSMA6L20A SMAF 24.50 V
