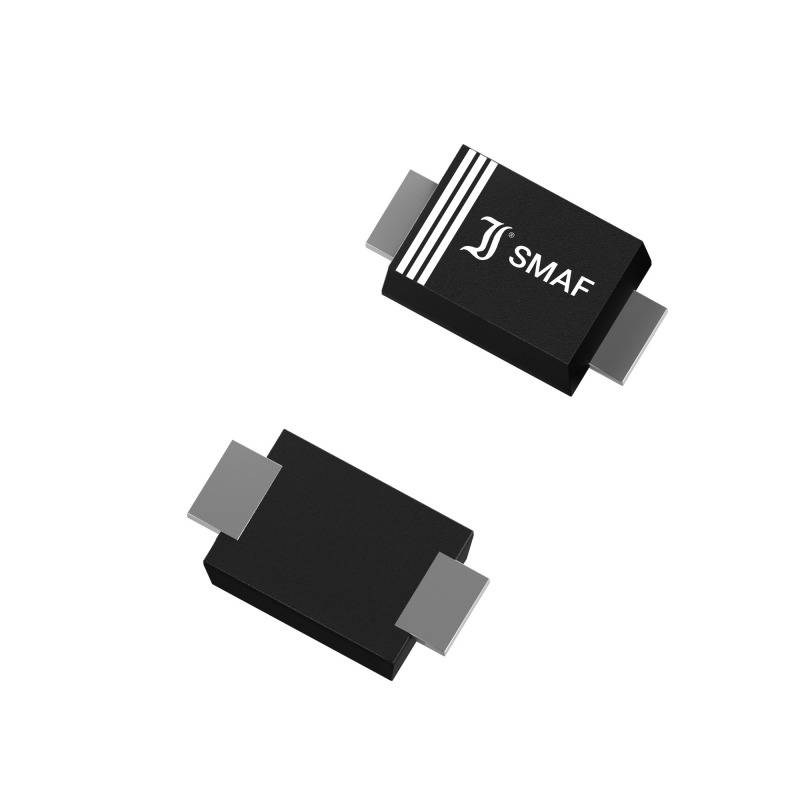

Image similar
Image similar
Diotec TVS diode TPSMA6L22A-AQ SMAF 26.90 V
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
SMAF
Reverse voltage U(R)
22 V
Mounting type
Surface-mount
Type
TPSMA6L22A-AQ
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
200
-
€ 0.10586
600
9% = € 0.01
€ 0.09621
1000
13% = € 0.01
€ 0.09236
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 200
Total (€ 0.10586 / piece)
€ 21.17
plus VAT.
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDSMAF housingTermination of voltage - VBRmin 24.40 VVBRmax 26.90 VIt 1 mAPulse power loss - PPPM 600 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 22.0 VMaximum reverse current ID @ VWM: 1,000 µAMaximum limit voltage - VC 35.50 VIPPM 16.90 ALock layer capacity - CJ: PFVR V
- Type
TPSMA6L22A-AQ
- Product type
TVS diode
- Enclosure
SMAF
- Manufacturer
Diotec
- Reverse voltage U(R)
22 V
- Breakdown voltage U(BR)
26.90 V
- Peak current I(pp)
16.90 A
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
