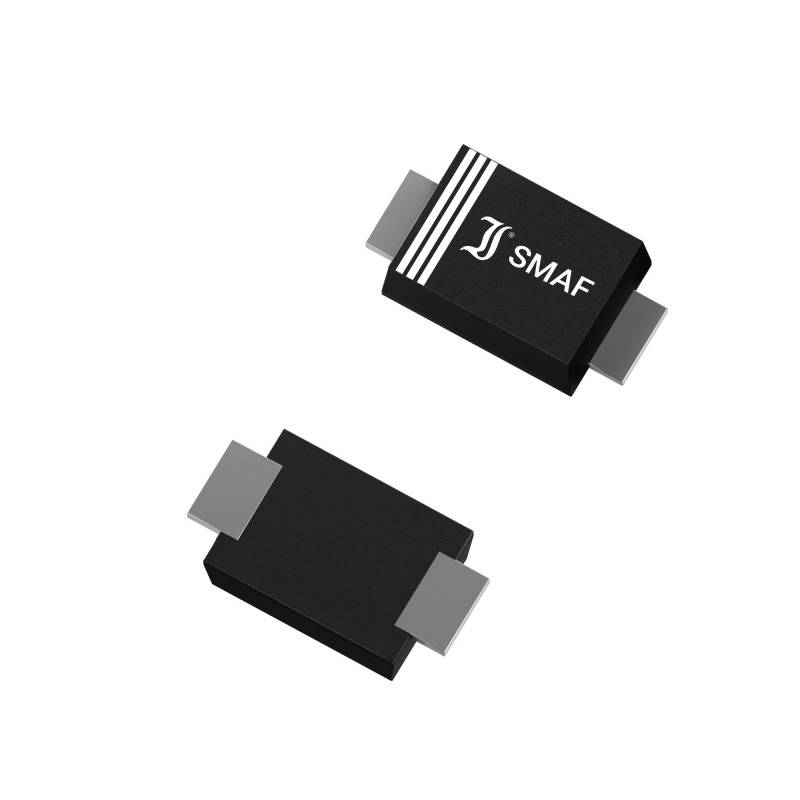

Diotec TVS diode TPSMA6L5.0A SMAF 7 V 600 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
SMAF
Reverse voltage U(R)
5 V
Power (max) P(TOT)
600 W
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
250
-
€ 0.07698
750
9% = € 0.01
€ 0.06997
1250
13% = € 0.01
€ 0.06717
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 250
Total (€ 0.07698 / piece)
€ 19.25
plus VAT.
14-day return policy included
Technical specifications
- Type SMDSMAF housingTermination of voltage - VBRmin 6.40 VVBRmax 7.00 VIt 10 mAPulse power loss - PPPM 600 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 5.0 VMaximum reverse current ID @ VWM: 800,000 µAMaximum limit voltage - VC 9.20 VIPPM 65.20 ALock layer capacity - CJ: PFVR V
- Type
TPSMA6L5.0A
- Product type
TVS diode
- Enclosure
SMAF
- Manufacturer
Diotec
- Reverse voltage U(R)
5 V
- Breakdown voltage U(BR)
7 V
- Peak current I(pp)
65.20 A
- Power (max) P(TOT)
600 W
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
- UKCA
yes
