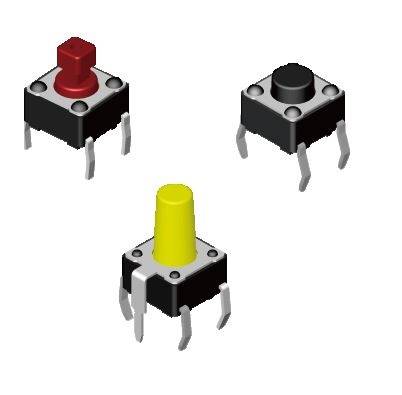

Diptronics DTS-62K-V DTS-62K-V Button 12 V DC 50 mA 1 x Off/On momentary (L x W x H) 6 x 6 x 5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Button
Switch position
1 x Off/On
Contact type
1 maker
Connection
Snap-in
Switching voltage
12 V DC
Datasheet (PDF)
Technical specifications
- Operating force 100 GF
- Product type
Button
- Functions
momentary
- Switch position
1 x Off/On
- Contact type
1 maker
- Connection
Snap-in
- Contact resistance
100 mΩ
- Switching voltage
12 V DC
- Switching current (max.)
50 mA
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
6 mm
- Width
6 mm
- Height
5 mm
- Recess depth
5 mm
- Content
1 pc(s)
- Insulation resistance
(500 V/DC) 100 MΩ
- Dim
(L x W x H) 6 x 6 x 5 mm
- RoHS-compliant
Yes
- Front panel cut-out
6 x 6 mm
- Type
DTS-62K-V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3132898 Diptronics DTS-62K-V DTS-62K-V Button 12 V DC 50 mA 1 x Off/On momentary (L x W x H) 6 x 6 x 5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3132898 Diptronics DTS-62K-V DTS-62K-V Button 12 V DC 50 mA 1 x Off/On momentary (L x W x H) 6 x 6 x 5 mm 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
