Diptronics DTSA-62K-V Button 12 V DC 50 mA 1 x Off/On momentary 1 pc(s)
EAN:
Part number:
Item no:
Product type
Button
Switch position
1 x Off/On
Switching voltage
12 V DC
Switching current (max.)
50 mA
Casing/button colour
Black/red
Datasheet (PDF)
Highlights & Details

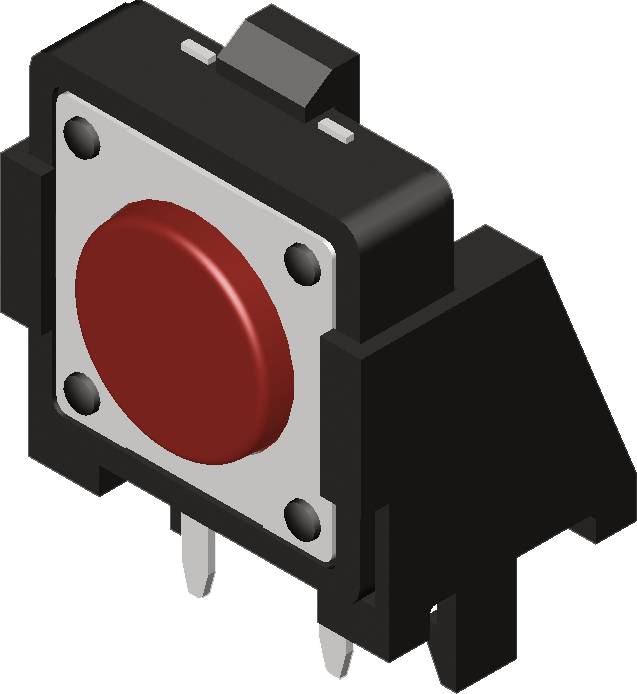

Tact switch THT right angle 6x6 DTSA-62K-V.
Our service for you
Technical specifications
- Operating force 100 GF
- Product type
Button
- Casing/button colour
Black/red
- Functions
momentary
- Switch position
1 x Off/On
- Contact resistance
100 mΩ
- Switching voltage
12 V DC
- Switching current (max.)
50 mA
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Height
3.85 mm
- Content
1 pc(s)
- Insulation resistance
(500 V/DC) 100 MΩ
- RoHS-compliant
Yes
- Front panel cut-out
6 x 6 mm
- Type
DTSA-62K-V
Documents & Downloads
Datasheet
Datasheet 3132873 Diptronics DTSA-62K-V Button 12 V DC 50 mA 1 x Off/On momentary 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3132873 Diptronics DTSA-62K-V Button 12 V DC 50 mA 1 x Off/On momentary 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
