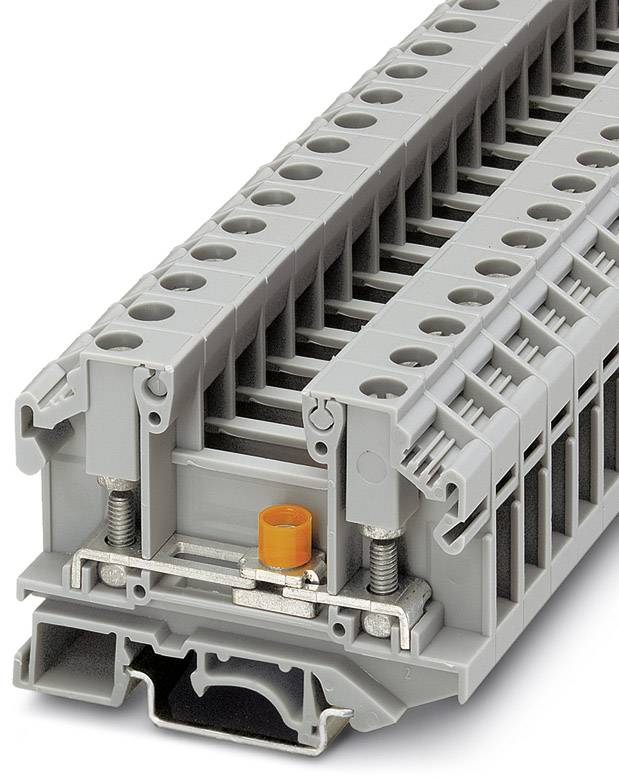

Disconnect terminal block OTTA 6-T 0790446 Phoenix Contact
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
36 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 9.23 / piece)
€ 461.34
plus VAT.
14-day return policy included
Highlights & Details
Disconnect terminal block OTTA 6-T
- OTTA 6-T
Technical specifications
- Product type
N terminal
- Connection
Bolt fixings
- Cross section (flexible) (min.)
0.1 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.1 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- AWG max.
10
- Clamp width
11 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
36 A
- Nominal current - rounded value
36 A
- Nominal voltage
800 V
- Manufacturer part #
0790446
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
OTTA 6-T
- Dim
(L x W x H) 69 x 11 x 52 mm
- Width
11 mm
- Height
52 mm
- Length
69 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718382 Disconnect terminal block OTTA 6-T 0790446 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718382 Disconnect terminal block OTTA 6-T 0790446 Phoenix Contact
Description
Universal terminal block with bolt connection, with disconnect slide, cross section: 0.1 - 6 mm², width: 11 mm, color: Gray
