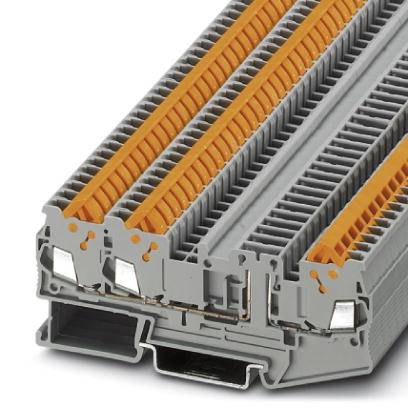

Disconnect terminal block QTC 1,5-TWIN-TG 3050413 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.45 / piece)
€ 172.26
plus VAT.
14-day return policy included
Highlights & Details
Disconnect terminal block QTC 1,5-TWIN-TG
- QTC 1,5-TWIN-TG
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
22
- AWG max.
16
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
400 V
- Manufacturer part #
3050413
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
QTC 1,5-TWIN-TG
- Dim
(L x W x H) 94 x 5.2 x 39.3 mm
- Width
5.2 mm
- Height
39.3 mm
- Length
94 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 585948 Disconnect terminal block QTC 1,5-TWIN-TG 3050413 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 585948 Disconnect terminal block QTC 1,5-TWIN-TG 3050413 Phoenix Contact
Description
Disconnect terminal block, Connection method: Quick connection, Cross section: 0.25 mm² - 1.5 mm², AWG: 24 - 16, Width: 5.2 mm, Height: 39.3 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
